Setup BoomTrac Pro Sensors

N87471-UN-09DEC09

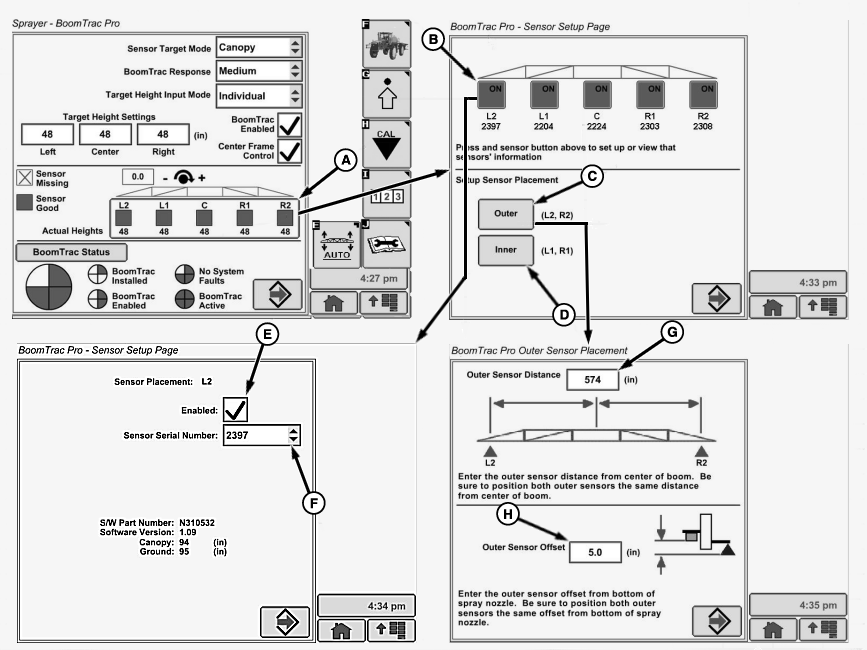

A - Boom Section Softkey

B - Section Softkey

C - Outer Sensor Placement Softkey

D - Inner Sensor Placement Softkey

E - Sensor Enable\Disable Check Box

F - Drop-Down Box

G - Input box

H - Input Box

1. Select BoomTrac Pro button on Sprayer Main Page.

2. Select Boom Section softkey (A) on BoomTrac Pro Setup Page. BoomTrac Pro Sensor Setup page will appear.

3. NOTE: To setup BoomTrac Pro sensors, document the physical location of each sensors and its corresponding serial number located on the bottom of the sensor. The location for left / right is as when the operator is sitting in the seat with R1 and L1 being sensors located closest to the centerline (of the machine as compared to R2 and L2.

   If BoomTrac is field installed or a faulty sensor is replaced, setup of Boom Height Sensors should be done before any other changes or calibrations are performed.

   Select individual Section softkey (B) to access a second Sensor setup page where:

   • Individual sensor can be enbled\disabled using check box (E)
   • Sensor serial number for that location can be selected using drop-down box (F)
   • Sensor information can be viewed



4. Select the Outer Sensor Placement softkey (C) to access the Outer Sensor Placement page where the outer sensor distance can be entered in the input box (G) and the outer offset distance can be entered in the input box (H).

   NOTE: Outer Sensor Distance (G)— this distance is from the center of the suspended center frame to the center of the outer boom BoomTrac Pro height sensor.

   Outer Sensor Offset (H)— The distance from the bottom of the BoomTrac Pro sensor to the bottom of the boom (spray nozzles). This value should only be changed if a different bracket is used or placement of the sensor on the boom is changed.

5. NOTE: Inner Sensor Placement softkey only available on 5 sensor systems.

   Select the Inner Sensor Placement softkey (D) to access the Inner Sensor Placement page.

6.

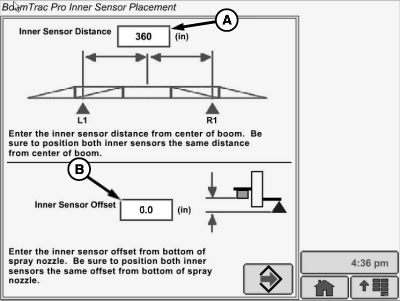

   N87472-UN-09DEC09

   A - Input Box

   B - Input Box

   Enter the inner sensor distance in input box (A) and enter the inner offset distance in the input box (B).

   NOTE: Inner Sensor Distance (A)— This input box is only valid for a 5 sensor system in which the vehicle has two sensors on the inner boom section and two on the breakaway sections. The distance entered here is the distance from the center of the suspended center frame to the center of the inner boom BoomTrac Pro height sensor. The default value is the recommended placement for the location of the sensor. For 3 sensor system BoomTrac Pro height sensors can be placed at inner R1, L1 positions or R2, L2 position.

   Inner Sensor Offset (B)— This is the distance vertically from the bottom of the boom to the face of the BoomTrac Pro height sensor. The offset for the inner height sensors should be zero (0) because the face of the sensor level with the bottom of the boom (spray nozzles).

---

N73824-UN-22SEP06

N73825-UN-08FEB07

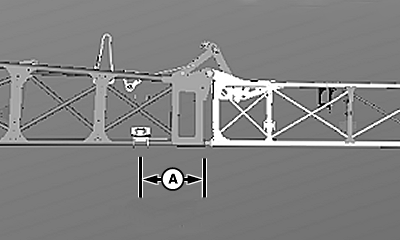

A - Distance from Hinge

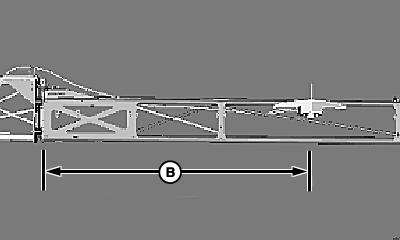

B - Distance from Hinge

Default Locations Of The Sensors On Different Boom Sizes
Inner Boom Section			Breakaway Section
Boom Length	Distance from Hinge (A)	Distance from Center of Center Frame	Distance from Hinge (B)	Distance from Center of Center Frame
27.4 m (90 ft.)	356 mm (14 in.)	8,872 mm (349.3 in.)	1,189 mm (46.8 in.)	12,007 mm (472.7 in.)
30.5 m (100 ft.)	356 mm (14 in.)	8,872 mm (349.3 in.)	1,189 mm (46.8 in.)	13,538 mm (533 in.)
36.6 m (120 ft.)	356 mm (14 in.)	10,389 mm (409 in.)	1,946 mm (76.6 in.)	16,327 mm (642.8 in.)
