Hydro Handle Calibration Procedure

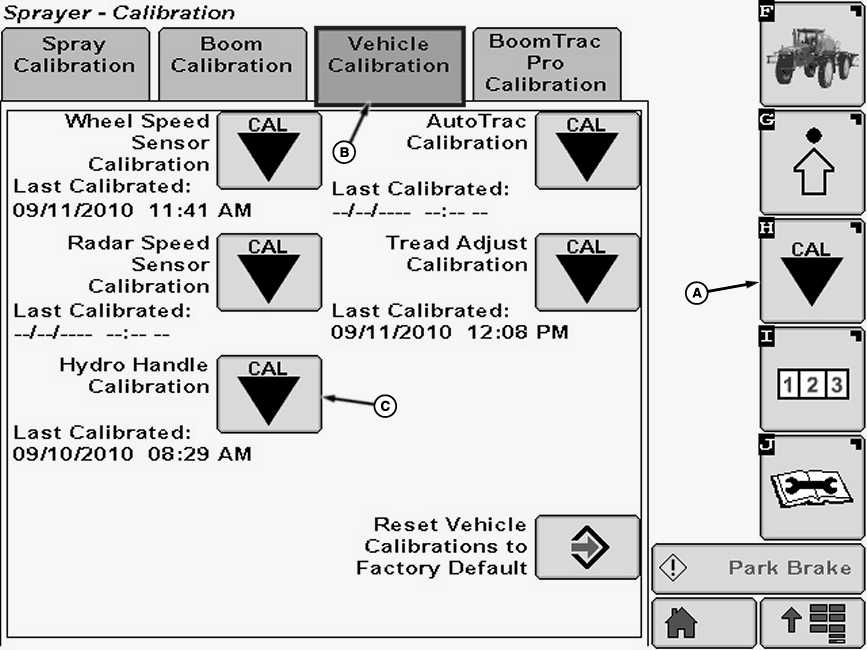

N89537
N89537-UN-23SEP10

A - Calibration Softkey

B - Vehicle Calibration Tab

C - Calibration Icon

Hydro calibrate procedure is used to determine the characteristics of the multifunction control handle assembly for use in hydrostatic drive train control. This calibration should be performed when any of the following components are serviced or replaced:

  • Propulsion handle
  • Forward, reverse, or park switch
  • Propulsion module
  • Armrest
  • Chassis controller
  • Hydro cable

There may also be need to perform the calibration due to normal wear of propulsion control components.

  1. Select the Calibration softkey (A).

  2. Select the “Vehicle Calibration” tab (B).

  3. Select calibration icon (C) next to “Hydro Handle Calibration”. Hydro Handle Calibration screen will appear.

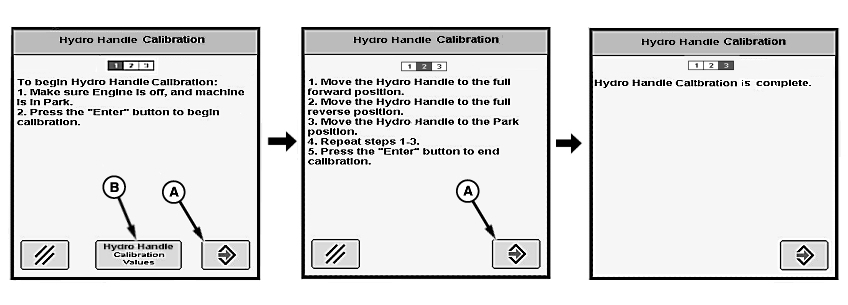

  4. N89538
    N89538-UN-23SEP10

    A - “Enter” Button

    B - Button

    Follow instructions on first screen. Press “Enter” button to begin calibration.

    NOTE: Pressing the “Drivetrain Calibration Values” button (B) will display another screen where those values can be viewed.


  5. Follow instructions on second screen. Press “Enter” button to end calibration. “Drivetrain Calibration is complete.” will be displayed. The hydro calibration is now complete and machine is functional.

    NOTE: If the calibration is aborted at anytime during the process, the controller will revert to previous calibration numbers.

    If the calibration is completed and the calibration values are not in range, a message will be posted accordingly with a request to rerun the calibration.

OUO6092,0000432-19-20100922
