Lubricate Steering Cylinder Tie Rod End—100 Hours

IMPORTANT: Use only John Deere SD Polyurea grease for lubricating suspension and steering components. Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

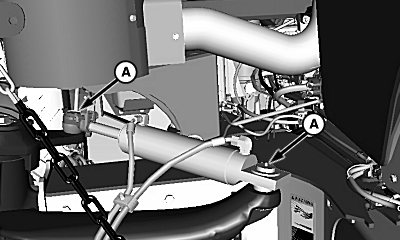

N91665
N91665-UN-19NOV12

A - Tie Rod End

B - Spindle Housing

Lubricate steering cylinder tie rod end (A) using John Deere SD Polyurea Grease every 100 hours.

OUO6092,00004BA-19-20110301
