Parking the Machine

1.
   N62486-UN-23APR03

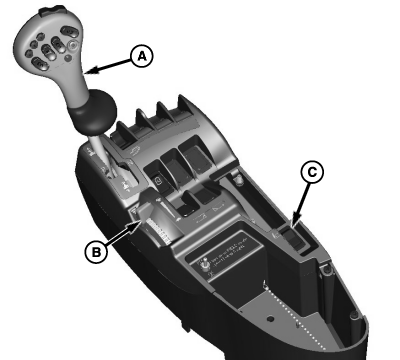

   A - Multifunction Control Handle

   B - Throttle Switch

   C - Ladder Switch

   To slow and stop the machine, slowly return the multifunction control handle (A) to “PARK” and press down on brake pedal.

   NOTE: Secondary brake switch does not need to be engaged when parking machine. Park brakes are automatically applied when multifunction control handle is placed in the “PARK” position and the SprayStar system reads “0” mph for 0.5 seconds or the engine is shut “OFF”.

---




2. Pull back on throttle switch (B) to reduce engine speed to slow idle.

3. Turn all lights and accessories “OFF”.

   IMPORTANT: To prevent engine damage, before stopping engine that has been operating at working load, idle engine for at least 2 minutes to cool hot engine parts.

4. Turn key to “OFF” position and remove key.

5. Ladder lowers automatically.
