Operating Load Command

1. NOTE: Load Command system takes priority over all other Spray Command system functions.

   NOTE: Load Command system locks sprayer from moving by applying parking brake until Load Command procedure is complete.

   CAUTION: Swinging nurse arm can cause injury to you and others. DO NOT PARK nurse tank on a hill where nurse arm could swing out. ALWAYS park nurse tank on flat ground.

   IMPORTANT: Determine appropriate sprayer approach to nurse vehicle before operation. Folding of booms and distance from nurse arm will vary based on nurse vehicle set up and field conditions.


   N82582-UN-13JAN09

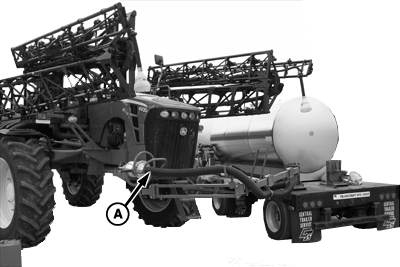

   A - Nurse Arm

   Park sprayer at appropriate distance from nurse vehicle to allow nurse arm (A) to swing out and connect to sprayer.

---




2. Engage parking brake and exit cab with engine still on.

3. CAUTION:


   TS206-UN-23AUG88


   N82585-UN-22JAN09


   N83156-UN-03FEB09


   N91667-UN-01MAR11

   A - Switch

   B - Switch

   C - GS3 Screen

   Operator must wear appropriate personal protection equipment when operating Load Command.

   Push switch (A or B) up on sprayer coupler or at ladder to arm Load Command system. To disarm, push down switch.

   NOTE: SprayStar display will display “Load Command Armed” (C) after pushing up switch.

---




4. CAUTION: Swinging nurse arm can cause injury to you and others. Always maintain control of nurse arm when it is unlatched or disconnected.


   N83185-UN-19FEB09

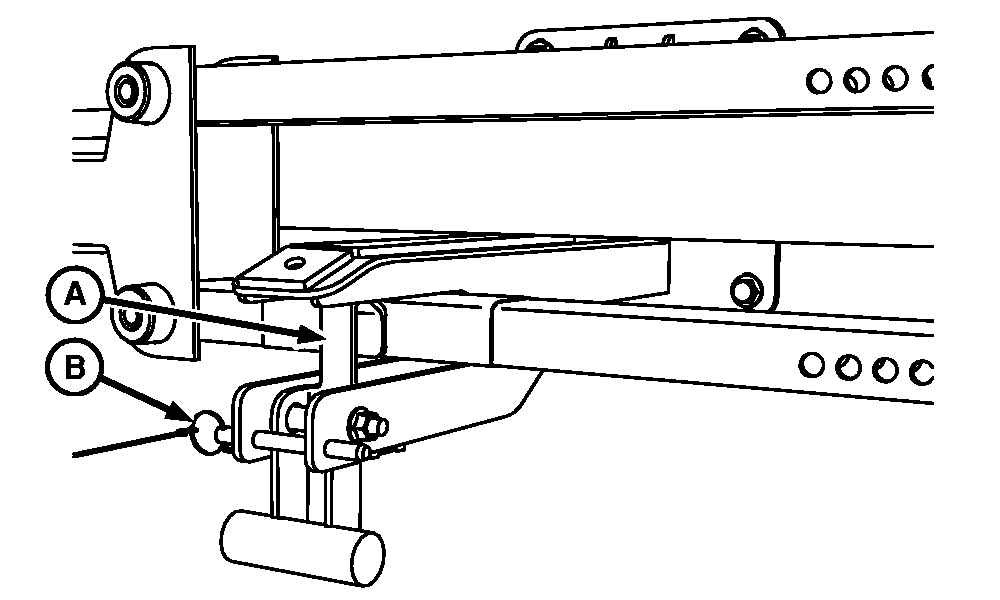

   A - Latch

   B - Lock

   Unlock (B) nurse arm from latch (A).

---




5. Unlatch secondary chain from nurse coupler.

6. Unfold nurse arm and position arm near sprayer coupler.

7. NOTE: Hold nurse arm coupler firmly to sprayer coupler momentarily (several seconds) until proximity sensors fully activate Load Command system.


   N83455-UN-23FEB09


   N91668-UN-01MAR11

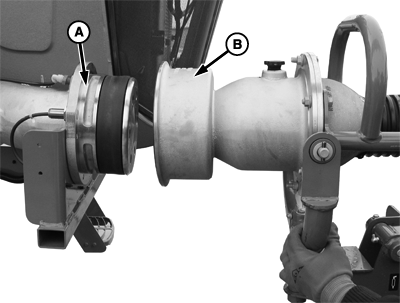

   A - Sprayer Coupler

   B - Nurse Arm Coupler

   C - GS3 Screen

   After arming Load Command, align sprayer (A) and nurse arm (B) couplers and push together. Couplers will lock together and begin pumping solution.

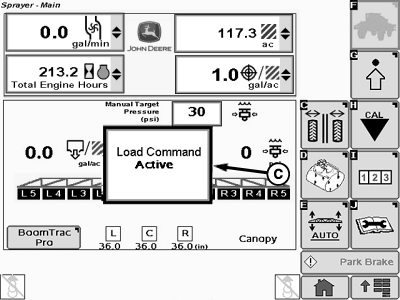

   NOTE: Spraystar display will display “Load Command Active” (C) once Load Command operation has begun.

---




8. NOTE:


   N82585-UN-22JAN09


   N83156-UN-03FEB09


   N82832-UN-23JAN09

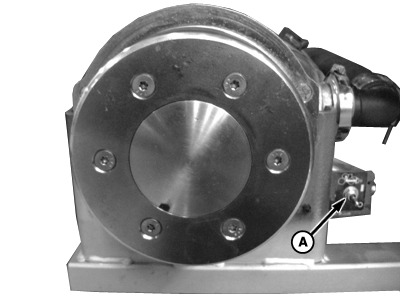

   A - Coupler Switch

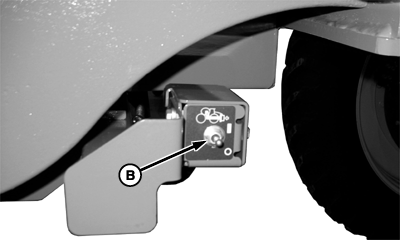

   B - Ladder Switch

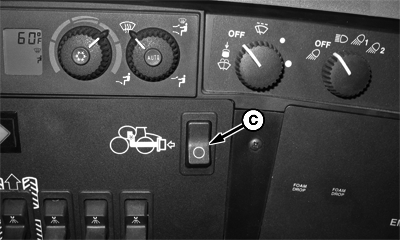

   C - Cab Switch

   Operator can shut Load Command system off or cancel armed system at any time by pushing down on sprayer coupler switch (A), ladder switch (B), or cab switch (C). Load Command system shuts down if coupler becomes disconnected.

   Load Command system will slow pumping down at 4353 L (1150 gal) and shut off at 4542 L (1200 gal). Air seal locking couplers will deflate and nurse arm coupler will fall away on its own or when operator backs away sprayer.

   Return to cab and wait for Load Command operation to finish.

   NOTE: When Load Command operation is complete “Load Command Active” message will disappear.

   CAUTION: Solution could remain in nurse arm coupler after disconnecting from sprayer coupler. Wear protective equipment to ensure excess solution does not come into contact with you or others.

---




9. Remove sprayer from park and back sprayer away from nurse arm when Load Command operation is complete.
