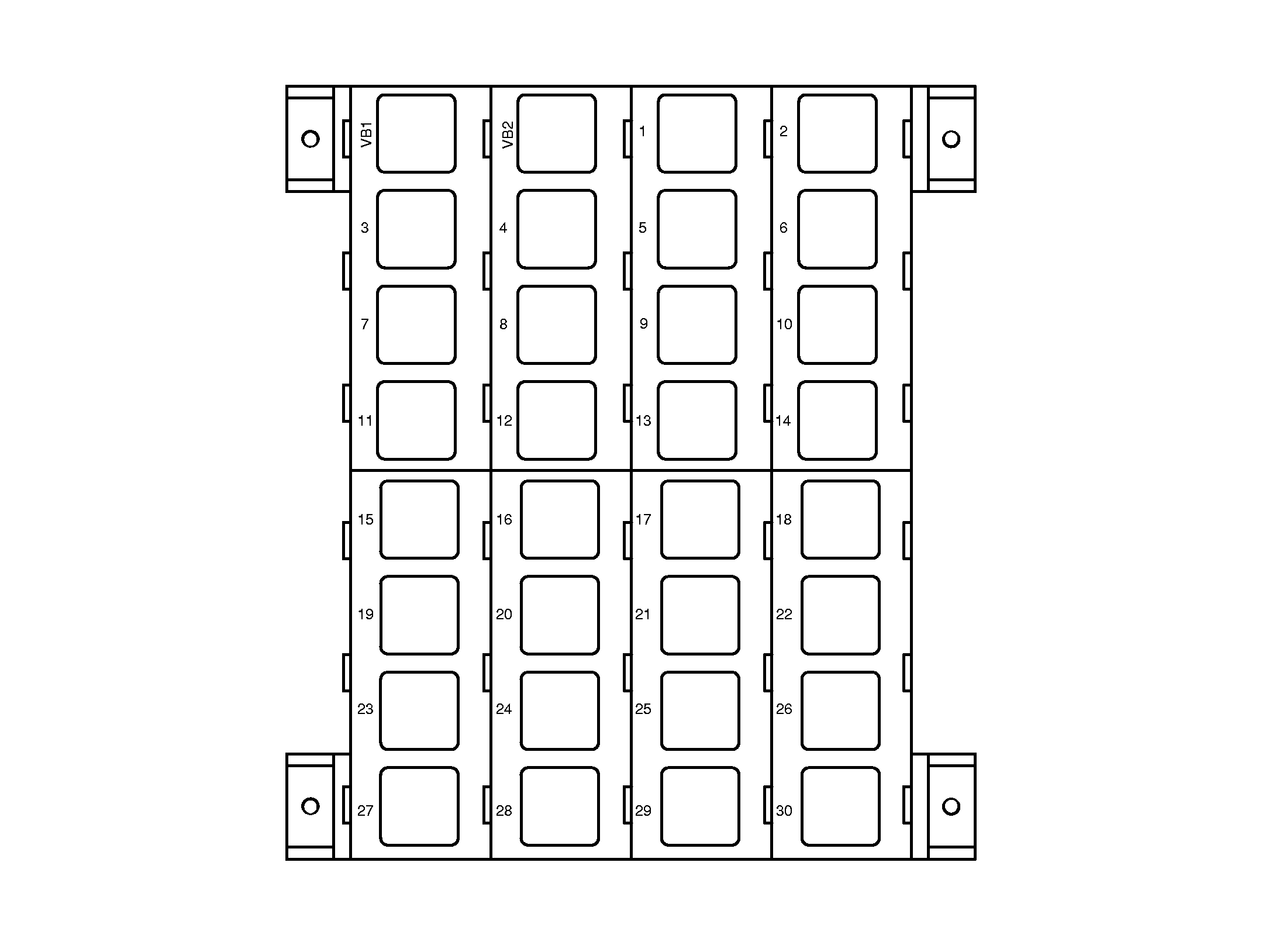

Cab Load Center Relays and Diodes

N95905-UN-18JAN12

VB1 - Diode

VB2 - Diode

K1 - ELX 1, ATC, UIM

K2 - Ladder

K3 - LS Jam

K4 - AC

K5 - ELX2

K6 - Accessory

K7 - Neutral Start

K8 - Empty

K9 - Wiper

K10 - Wiper Latch

K11 - Wiper Pulse

K12 - Recirculating Blower

K13 - Empty

K14 - Pressurizer Blower

K15 - Empty

K16 - LF Tread Out

K17 - RF Tread Out

K18 - RR Tread Out

K19 - LR Tread Out

K20 - Empty

K21 - Tread In

K22 - AUX Plug

K23 - Horn

K24 - Low Threshold Valve Enable

K25 - Field Lights

K26 - ELX3

K27 - ELX4

K28 - RH Amber Turn

K29 - LH Amber Turn

K30 - Stop Light
