Battery Box Fuses and Relay

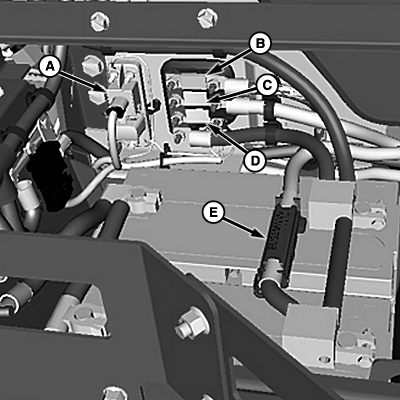

N89468-UN-13JAN11

A - F250/K250—Start Relay (60 amp)

B - F200—Cab Fuse (125 amp)

C - F201—Chassis Rear LC Fuse (125 amp)

D - F202—Chassis Front LC Fuse (125 amp)

E - F220—Alternator Fuse (200 amp)

IMPORTANT: Do not attempt to disassemble fuse unless instructed by your John Deere dealer. Ensure both negative (—) and positive (+) battery connections are disconnected from both batteries prior to fuse inspection or replacement.
