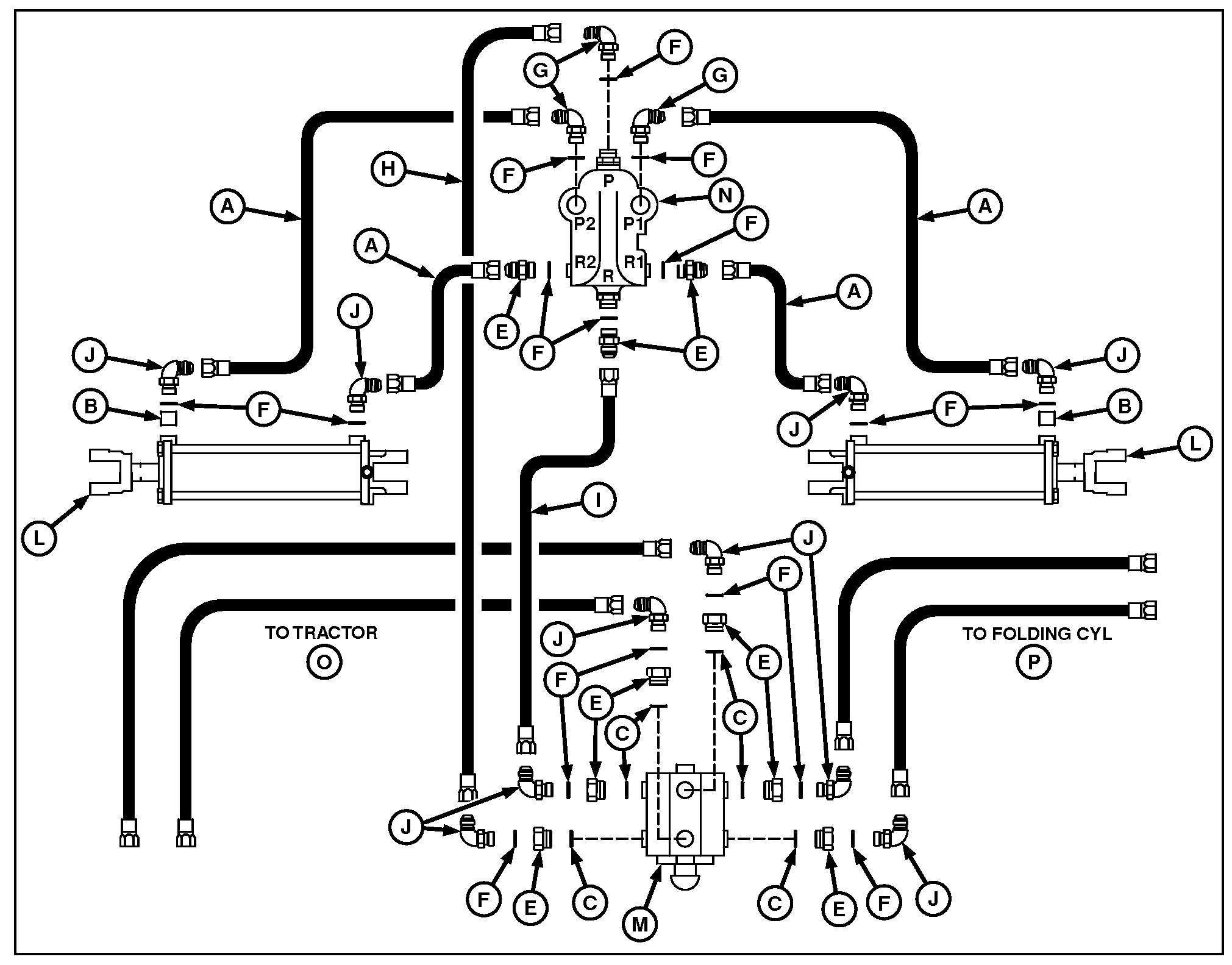

Hydraulic Diagram—Left-Hand and Right-Hand Dual Row Markers

N81687-UN-12SEP08

A - Hose 6 x 6477 mm (1/4 x 255 in.)

B - Orifice

C - O-Ring

D - Fitting

E - Adapter

F - O-Ring

G - Elbow Fitting 90°

H - Hose 6 x 965 mm (1/4 x 38 in.)

I - Hose 6 x 635 mm (1/4 x 25 in.)

J - Elbow Fitting

K - O-Ring (1-in.)

L - Cylinder 76 x 203 mm (3 x 8 in.)

M - Selector Valve

N - Sequencer Valve

O - To Tractor

P - To Folding Cylinder

NOTE: Ram end of cylinder plumbed to P₁ and P₂

Base end of cylinder plumbed to R₁ and R₂
