Adjust Metering Valves—Tractors With Mechanical SCV (Selective Control Valve)

NOTE: Tractor hydraulic oil flow must be at least 45 L/min (12 gpm) for proper operation of the machine.

NOTE: For non John Deere tractors, see dealer for hook-up.

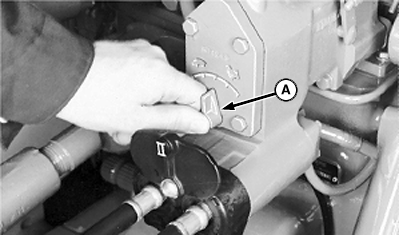

RW5885-UN-17DEC01

With Mechanical SCV Controls

RW21395-UN-18JUN92

With Mechanical SCV Controls

RW21754-UN-21AUG92

RW21758-UN-21AUG92

SCV Detent Selectors

A - Metering Valves

B - Lock Position

C - No Detent Position

D - Continuous Detent Position

Selective Control Valve	Valve (A) Setting	Detent Position
I Openers	Fast (Hare)	Continuous (D)
II Frame Lift	Fast (Hare)	No Detent (C)
III Fold	Start in middle Adjust for fold rate	No Detent (C)
