Adjusting Metering Valves—Tractors With Electro/Hydraulic SCV Controls

NOTE:

A52529-UN-26NOV03

7720, 7820, 7920 Series

N48104-UN-01JUN94

8000 Series

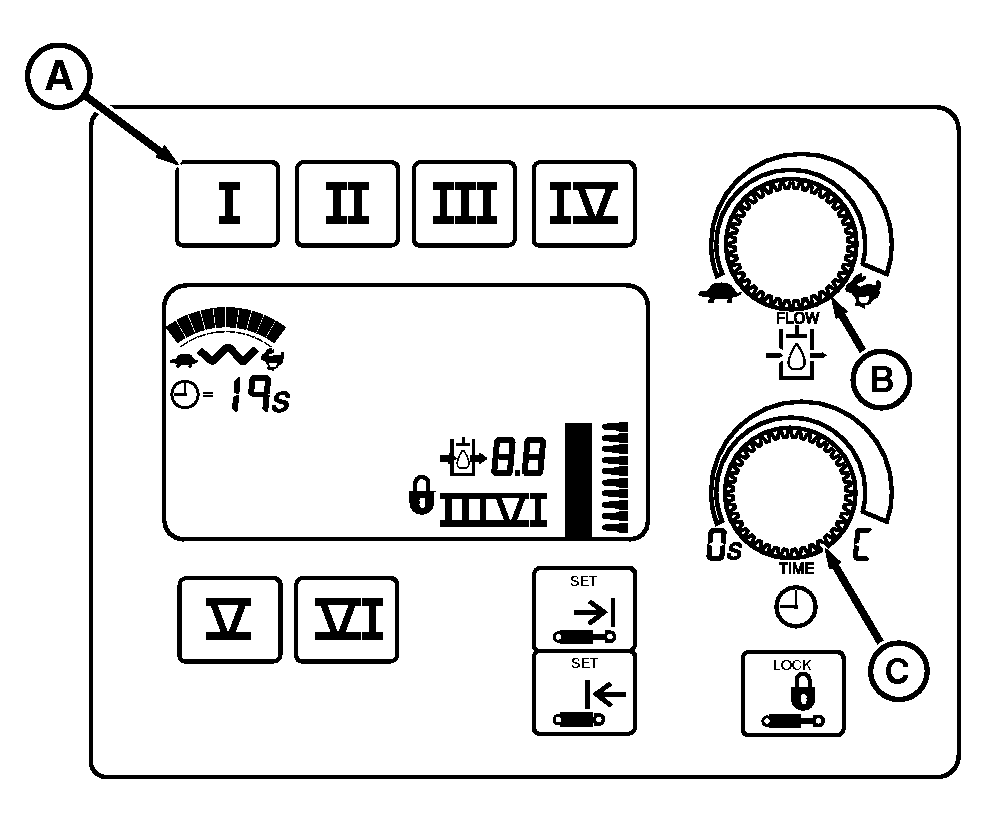

A - Touch Control Switch

B - Flow Control Knob

C - Time Detent Knob

NOTE: For non John Deere tractors, see dealer for hook-up.

Press appropriate touch control switch (A) I through V to program each SCV. Adjust flow rate with flow control knob (B). Set detent time with time detent knob (C).

When raising or lowering openers, the tractor hydraulic pump will continue to operate after the raise/lower cylinders have stopped moving. This is normal and not harmful. However, when not seeding, shut the SCV off by moving lever slightly forward or rearward after the lever has returned to NEUTRAL.

Selective Control Valve	Flow	Detent (TIME)
I Openers	10	Constant “C”
II Frame Lift	10	Zero
III Fold	Start at 4 Adjust for fold rate	Zero
