Idle Engine

N89296-UN-21OCT10

N98751-UN-26SEP12

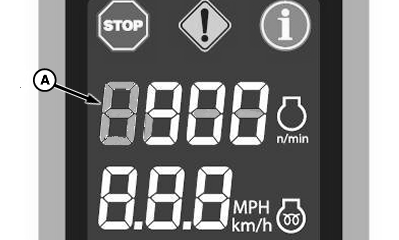

A - Engine Speed

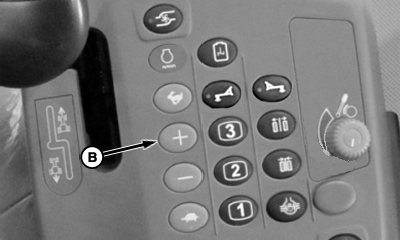

B - Increase Engine Speed Button

Allowing the engine to idle uses fuel inefficiently and can cause a build-up of carbon in the engine.

If machine must be left with the engine running for more than 3 or 4 minutes, minimum engine speed should be 1000 rpm.

View the engine rpm's (A) on primary display unit (PDU). Push increase engine speed button (B) until desired RPM is displayed.
