Reduce Travel Speed

1. CAUTION: To avoid possible serious injury or death to you or others, always use seat belt properly.

   IMPORTANT: Premature brake wear and damage can occur if primary braking is accomplished using the brake pedal, instead of the multifunction control handle. Always pull the multifunction control handle back before using the brake pedal.


   N98748-UN-17SEP12


   N98758-UN-08APR13


   N98759-UN-17SEP12

   A - Multifunction Control Handle

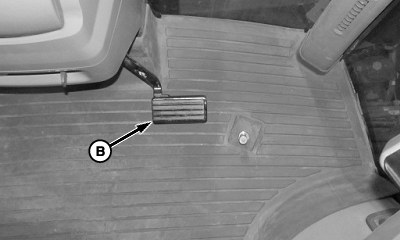

   B - Brake Pedal

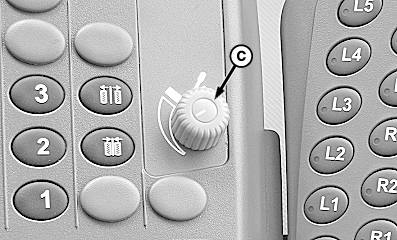

   C - Modulated Secondary Brake Dial

   To slow machine, pull back on multifunction control handle (A) for primary braking.

   NOTE: Braking will occur from hydro system.

---




2. For more aggressive (faster) braking press down on brake pedal (B) after multifunction control handle has been pulled back. Be prepared for a rapid decrease in speed. Service braking stops the machine very quickly.

   NOTE: Braking will now occur from front caliper brakes.

3. In the event that primary (hydro) and service (brake pedal) systems are not operating correctly, turn the modulated secondary brake dial (C).

   IMPORTANT: The secondary brake engages the park brake system. Engaging secondary brake system while machine is moving causes significant wear to the park brake components. Park brakes will need to be tested to verify proper operation after using the secondary brake. (See Verify Proper Operation Of Park Brakes in Operating The Machine section.)

   NOTE: Modulated secondary brake dial does not need to be engaged when parking machine. Park brakes are automatically applied when multifunction control handle is in “Park” position.
