Clean Cooling Package

1.

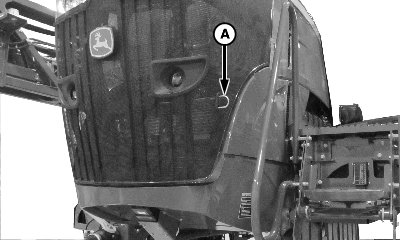

   N99725-UN-17SEP12

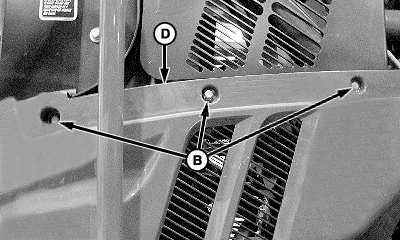

   N99726-UN-17SEP12

   Left-Hand Side Shield

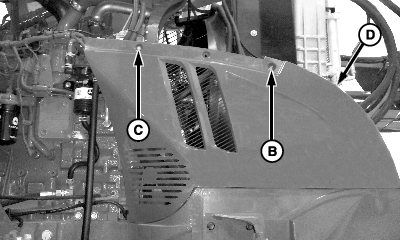

   N99727-UN-17SEP12

   Right-Hand Side Shield

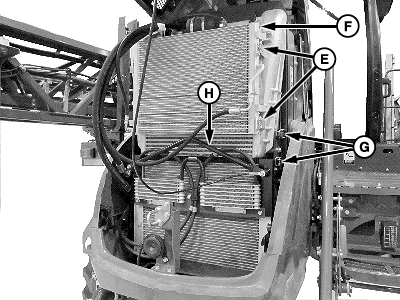

   N99724-UN-17SEP12

   A - Latch Handle

   B - Cap Screw, 4 Used

   C - Cap Screw and Nut

   D - Side Shields

   E - A/C Condenser Latches

   F - A/C Condenser

   G - Cooler Latches

   H - Handle

   Stop engine and remove key.

---




2. Pull latch (A) to raise hood.

3. Remove and retain cap screws (B), cap screw and nut (C) and side shields (D).

4. Release A/C condenser latches (E).

5. CAUTION: Reduce compressed air to 210 kPa (2 bar) (30 psi) or less when using for cleaning purposes. Clear area of bystanders, guard against flying debris, and wear personnel protection equipment, including eye protection. A filter type respirator is also advised to avoid inhalation of harmful particles.

   NOTE: Using an air hose, clean radiator and cooler units by blowing out any foreign material from back to front.

   Swing A/C condenser (F) away from coolers and clean with compressed air or water.

6. Release cooler latches (G).

7. Pull out on handle (H) to position coolers for cleaning.

8. Clean coolers and radiator using compressed air or water.

9. Return all parts to original positions after cleaning and retain them properly.
