Replace Fan Belt—6.8 L Engine

NOTE: Fan drive belt is equipped with an automatic tensioner which does not require adjustment.

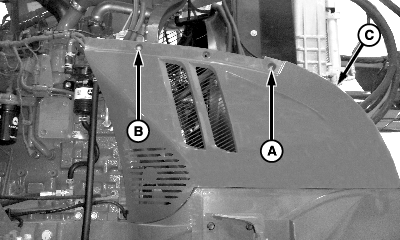

  1. N99114
    N99114-UN-08FEB13

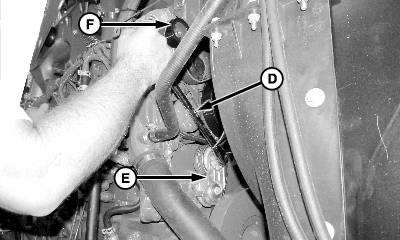

    N99113
    N99113-UN-17SEP12

    A - Cap Screw

    B - Cap Screw and Nut

    C - Right-Hand Engine Side Shield

    D - Breaker Bar

    E - Tensioner

    F - Alternator Pulley

    Raise Hood.


  2. Remove cap screw (A) and cap screw and nut (B), lift right-hand engine side shield (C) off of alignment studs.

  3. Release tension on belt using a 13 mm (1/2 in.) breaker bar (D).

  4. Remove belt from alternator pulley (F).

  5. Carefully release tensioner.

  6. Remove belt from remaining pulleys.

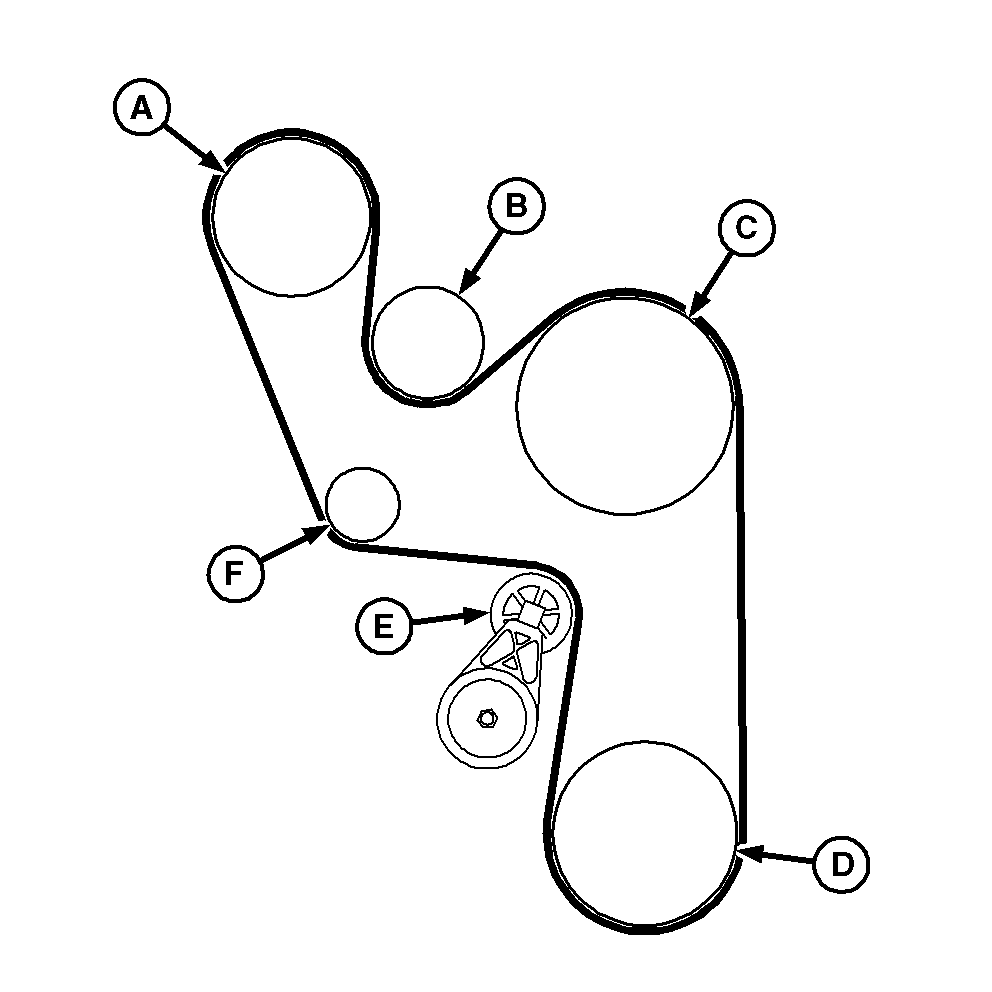

  7. N97486
    N97486-UN-18JUL12

    A - Alternator Pulley

    B - Idler Pulley

    C - Fan Pulley

    D - Drive Pulley

    E - Tensioner Pulley

    F - Water Pump Pulley

    Replace belt as shown.


  8. Install side shield and lower hood.

CS12167,00001B2-19-20130327
