Adjust Front Axle Toe-In

N90859
N90859-UN-07JAN11

N65827
N65827-UN-05APR04

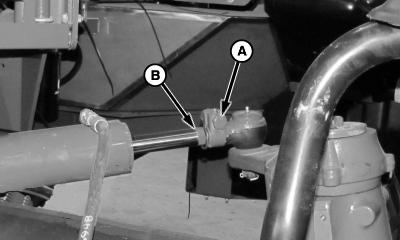

A - Clamp

B - Cylinder Rod

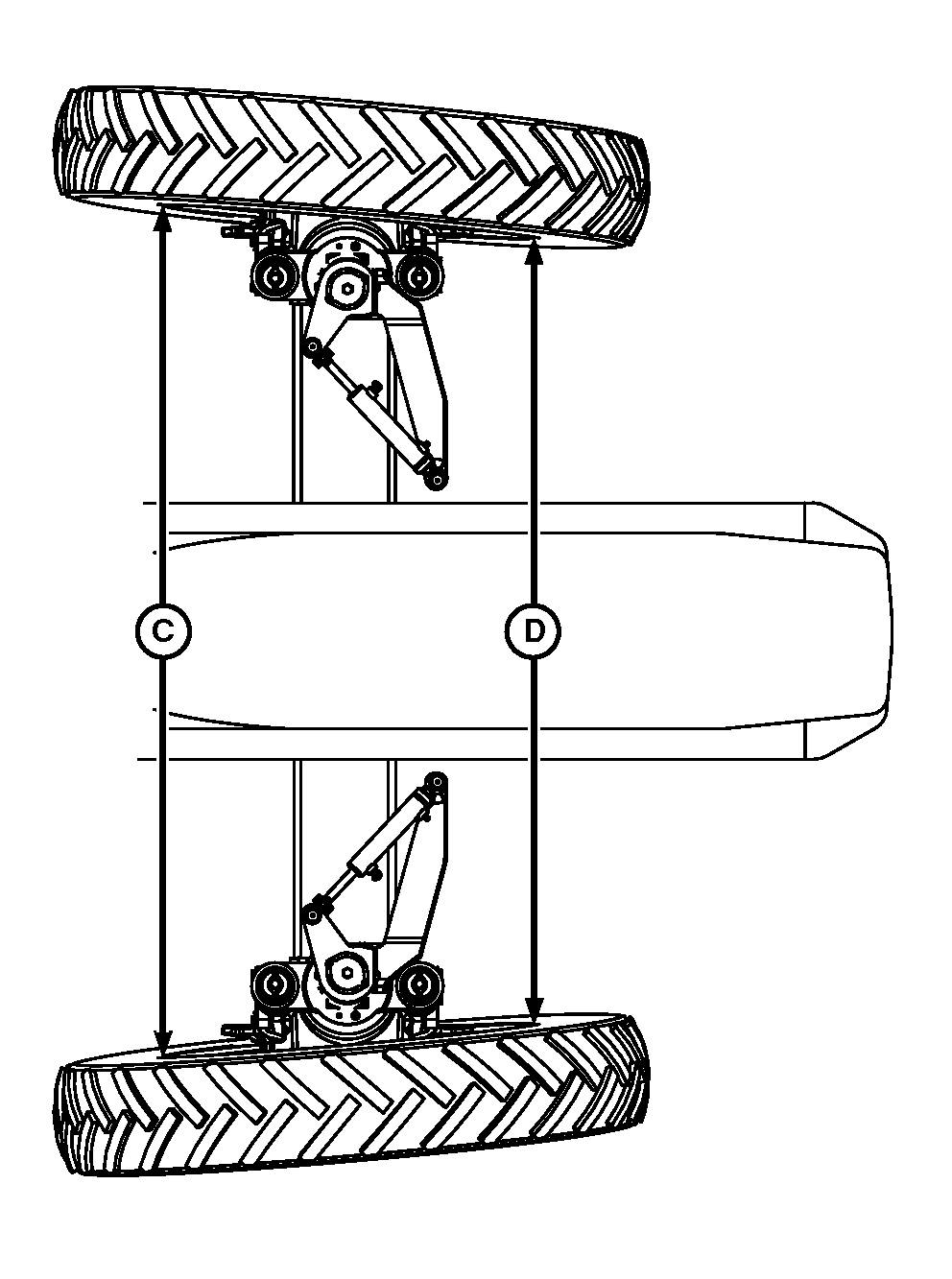

C - Dimension

D - Dimension

  1. Loosen clamp (A).

  2. Adjust cylinder length by turning cylinder rod (B).

  3. Repeat steps 1 and 2 for opposite side of machine.

  4. Move left and right tires evenly until difference between (C and D) are within specified range.

    ItemMeasurementSpecification
    Front WheelsToe-In0—10 mm (0—0.375 in.)

    NOTE: With cylinders at half stroke, dimension (D) should be 0—10 mm (0—0.375 in.) less than dimension (C).

  5. Tighten clamp on each side of machine.

  6. Perform Check Front Axle Toe-In procedure to verify adjustments.

CS12167,00001B7-19-20120621
