Check Solution Tank Straps—After First Ten Hours (Poly Tank Only)

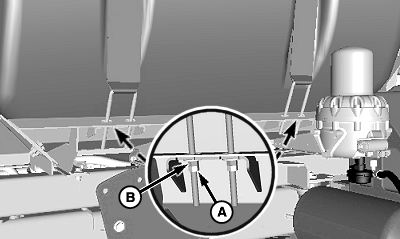

N98930-UN-25JUN13

A - Jam Nuts

B - Nuts

1. Fill solution tank.

2. Check solution tank straps for tightness.

3. If loose:

   1. Then loosen jam nuts (A).

   2. Tighten until straps are snug and then turn nuts (B) an additional two turns

   3. Tighten jam nuts.
