Lubricate Suspension Assemblies—Daily

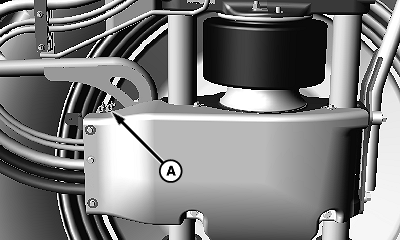

N100182-UN-21SEP12

Suspension Grease Bank

A - Grease Fittings

Lubricate front and rear suspension assemblies with ONLY John Deere SD Polyurea Grease. Use five pumps of grease at each fitting (A).

IMPORTANT: Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

NOTE: Four grease fittings on each wheel at one location.
