Lubricate Spindle Housing—Daily

IMPORTANT: Use only John Deere SD Polyurea grease for lubricating suspension and steering components. Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

N100783
N100783-UN-13FEB13

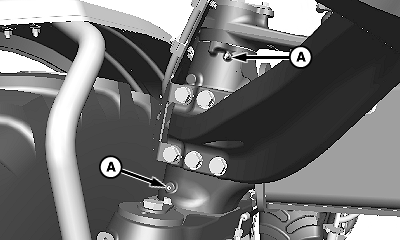

A - Grease Fittings

Lubricate spindle housing grease fittings (A) using John Deere SD Polyurea Grease daily.

NOTE: Two grease fittings are on each front spindle housing.

CS12167,00001D4-19-20130121
