Adjust Front Grille Lights

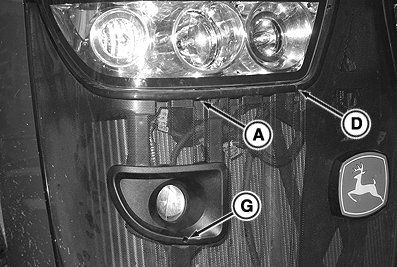

RXA0106698-UN-26FEB10

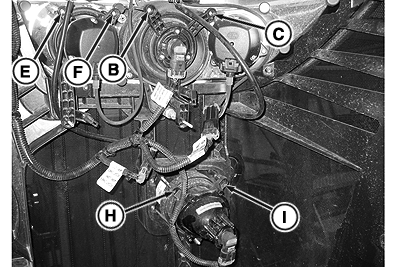

RXA0106696-UN-26FEB10

A - High Beam Lowering Adjustment Screw

B - High Beam Tilt Up And Out Adjustment Screw

C - High Beam Tilt Up And In Adjustment Screw

D - Center Spot Lowering Adjustment Screw

E - Center Spot Tilt Up And Out Adjustment Screw

F - Center Spot Lowering Adjustment Screw

G - Low Beam Lowering Adjustment Screw

H - Low Beam Tilt Up And Out Adjustment Screw

I - Low Beam Tilt Up And In Adjustment Screw

To Adjust front grill lights, use the following steps as needed

For High Beam Headlights:

1. To lower the high beam aim, turn high beam adjustment screw (A) clockwise.

   To raise and tilt out high beam, turn high beam adjustment screw (B) clockwise.

   To raise and tilt in high beam, turn high beam adjustment screw (C) clockwise.

   For Center Spot Light;

2. To lower center spot light, turn center spot adjustment screw (D) clockwise.

   To raise and tilt out center spot beam, turn center spot beam adjustment screw (E) clockwise.

   To raise and tilt in center spot beam, turn center spot beam adjustment screw (F) clockwise.

   For Low Beam Headlights;

3. To lower low beam headlights aim, turn low beam adjustment screw (G) clockwise.

   To raise and tilt out low beam headlights, turn low beam adjustment screw (H) clockwise.

   To raise and tilt in low beam headlights, turn low beam adjustment screw (I) clockwise.

4. Repeat for opposite side of sprayer.
