Aim Head Lights

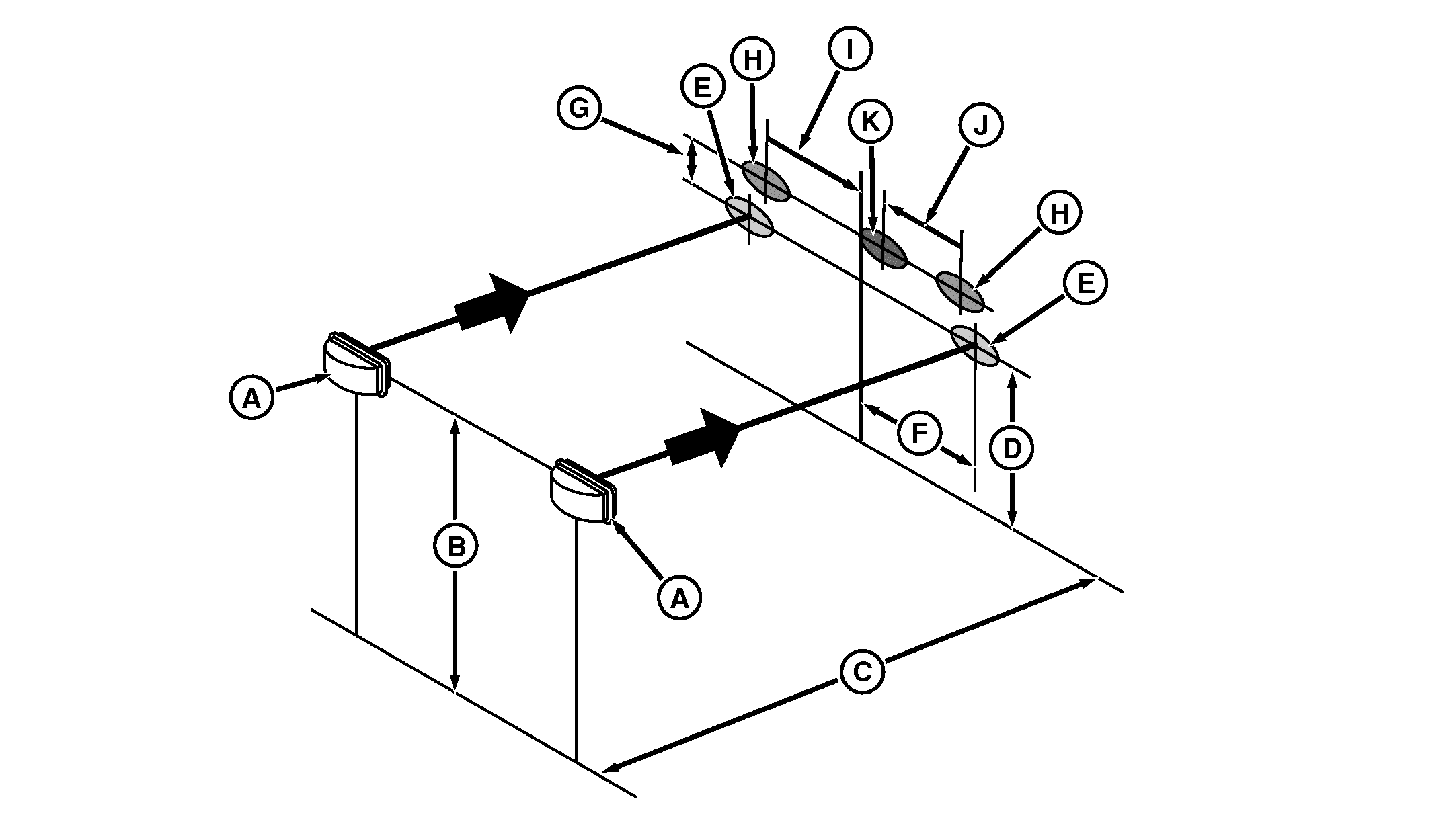

RXA0107269-UN-03JUN10

A - Low Beam Road Lights

B - Distance, Center of Low Beam Road Lights To Ground

C - Distance, 7.5 meters (25 ft)

D - Horizontal Line on Wall

E - Center of Low Beam Road Light

F - Distance, 914 mm (36 in.)

G - Distance, 355 mm (14 in.) (Center of Low Beam Road Light Beam To Center of High Beam).

H - Road Lights High Beam Center

I - Distance, 787 mm (31 in.) (Road Light High Beam Center To Tractor Center Line

J - Distance, 635 mm (25 in.) (Road Light High Beam Center To Front Inner Flood Beam Center)

K - Front Inner Hood Beam Center

1. Park sprayer on a level surface with low beam road lights (A) 7.5 meters (25 ft) (C) from a vertical wall. Turn on low beam road lights.

2. Measure the distance (B) from center of low beam road lights to the ground.

3. Mark a horizontal line on the wall at the same height as center of low beam road lights.

4. On the wall, mark each low beam road light beam center, then determine vertical center line between low beam road light's beam.

5. On the wall, mark vertical center line.

6. Distance between low beam road light's beam center and center line should be 914 mm (36 in.) ((F)).

7. Turn on high beam road lights.

8. Adjust high beam road lights so edge of bright area (H) is at least one tenth of distance (B) above center of low beam road lights spot (E).

9. On the wall, mark each high beam road light beam center (H), then determine vertical center line between high beam road light's beam.

10. Distance between high beam road light's beam center and center line should be 787 mm (31 in.) ((I)).

11. Make sure front inner hood lights are programmed on, then turn on field lights.

12. Distance between high beam road light's beam center (K) and inner hood light center line should be 635 mm (25 in.) ((J)).
