Battery Disconnect Switch

IMPORTANT: Do not disconnect battery on machines equipped with Final Tier 4 engines until Light Emitting Diode (LED) (A) has turned off. This indicates the diesel exhaust fluid (DEF) system purge is complete.

N102417
N102417-UN-01MAR13

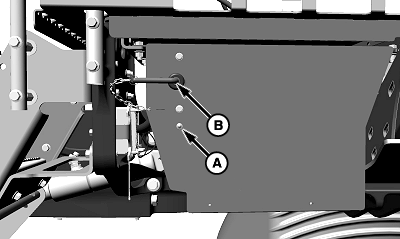

A - Light Emitting Diode (LED)

B - Handle

Rotate battery disconnect switch handle (B) clockwise, as shown, to turn machine electrical system On. Rotate handle counterclockwise to turn system Off.
