Replace Courtesy and Map Light Bulbs

1. IMPORTANT:

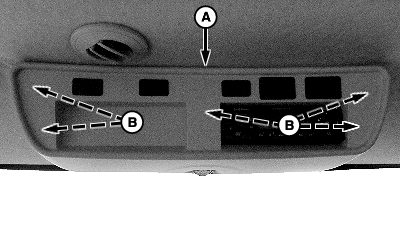

   N99721-UN-17SEP12

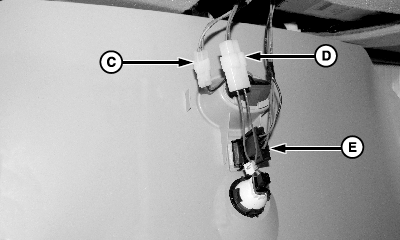

   N99720-UN-17SEP12

   A - Bezel

   B - Retainers

   C - Courtesy Light Connector

   D - Map Light Connector

   E - Switch Connector

   Do not pull down on bezel (A) when removing.

   Remove bezel by pulling straight out to release retainers (B).

---




2. Unplug courtesy light, map light and switch connectors (C-E).

3.

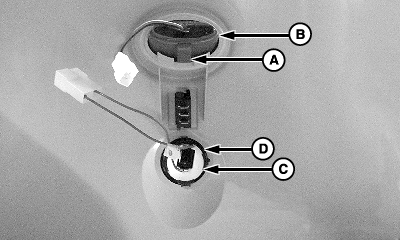

   N99722-UN-17SEP12

   A - Retaining Clip

   B - Courtesy Light Bulb

   C - Map Light Bulb

   D - Retaining Ring

   Press retaining clip (A) on courtesy light bulb (B) and remove bulb.

---




4. Remove map light bulb (C) from retaining ring (D).

5. Install new bulbs in reverse order of removal.
