Operate a Booster Battery or Charger

CAUTION:

TS204
TS204-UN-15APR13

Gas given off by batteries is explosive. Keep sparks and flames away from batteries. Make last connection and first disconnection at a point away from booster batteries.

IMPORTANT: Be sure polarity is correct before making connections. Reversed polarity will damage electrical system or possibly cause an explosion of a battery.

If a booster battery is used, two or more batteries cannot be used in series. They must be parallel. Be sure polarity is correct before making connections. Reversed polarity will damage electrical system or possibly cause an explosion of a battery.


Booster Battery

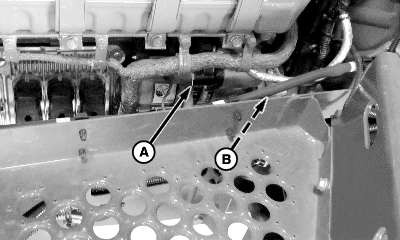

  1. N99105
    N99105-UN-17SEP12

    A - Positive Terminal

    B - Negative Terminal

    Attach one cable (red) to the remote positive terminal (A) of the starter and positive terminal of booster battery.


  2. Attach the second (black) battery cable to negative terminal of booster battery. Attach other end to ground terminal (B) or ground stud on engine, if supplied.

  3. Remove cable from negative terminal first when disconnecting. Then disconnect positive terminal.


Battery Charger

  1. Attach positive charger lead to positive remote terminal (A) with charger in OFF position. Attach negative charger lead to ground terminal (B).

  2. IMPORTANT: Set battery charger at the nominal 12 volt and no more than 16 volt maximum.

    Switch charger to ON and charge battery according to charger manufacturer's instructions.

  3. Switch charger to OFF. Remove negative charger lead first, then positive lead.

CS12167,0000219-19-20130613
