Replace Front Grille Halogen Light Bulbs

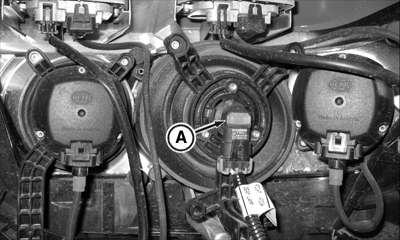

  1. RXA0110458
    RXA0110458-UN-10SEP10

    Right-Hand Side Shown

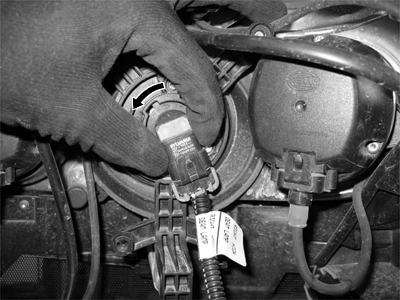

    RXA0110454
    RXA0110454-UN-10SEP10

    Right-Hand Side Shown

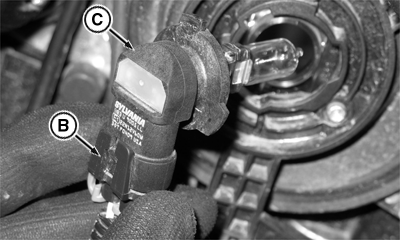

    RXA0110461
    RXA0110461-UN-10SEP10

    Right-Hand Side Shown

    A - Halogen Headlight

    B - Retaining Tab

    C - Light Bulb Assembly

    Raise hood.


  2. Rotate halogen headlight (A) counterclockwise 1/4 turn and remove.

  3. Disconnect wiring harness plug by lifting retaining tab (B).

  4. Replace light bulb assembly (C).

  5. Install new light bulb in reverse order of removal.

CS12167,000021C-19-20130107
