Replace High Intensity Discharge (Xenon) Headlight Bulb— If Equipped

  1. CAUTION: Avoid serious injury or death from electrical shock or lamp explosion. Lamps are powered by 25,000 volts. Before working on HID-Xenon lights or ballast, ensure that lights are turned OFF, engine is shut OFF, parking brake is set, key is removed, and appropriate eye protection is worn.

    If lights were previously operated, wait a minimum of five minutes before servicing bulb.

    Raise hood to access lights.

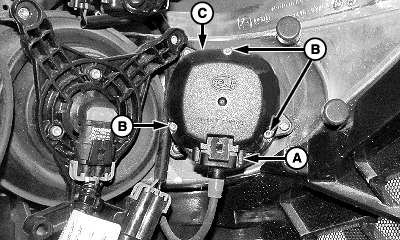

  2. N99601
    N99601-UN-17SEP12

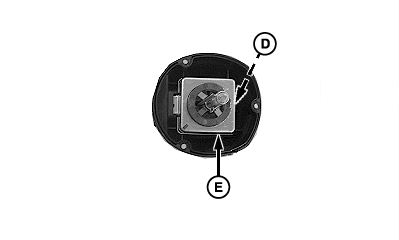

    N99602
    N99602-UN-17SEP12

    A - Connector

    B - Socket Head Cap Screws (3 Used)

    C - Rear Housing

    D - Locking Tab

    E - HID-Xenon Bulb

    Disconnect wiring harness connector (A) from light assembly.


  3. Remove and retain socket head cap screws (B) and remove rear housing (C).

  4. Pry locking tab (D) and remove HID-Xenon bulb (E).

  5. IMPORTANT: Handle bulb by the base and avoid touching glass.

    Remove and replace bulb.

  6. Assemble light in reverse order.

CS12167,000021D-19-20130620
