Replace Front And Side Cab Roof Light Bulbs

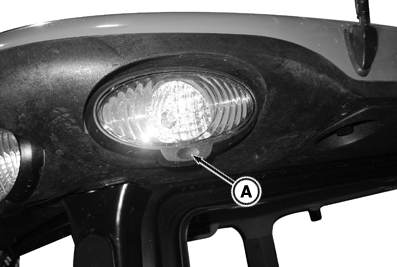

  1. Push down light fixture tab (A).

    RXA0099133
    RXA0099133-UN-19SEP08

    RXA0099135
    RXA0099135-UN-19SEP08

    A - Light Fixture Tab

    B - Bulb

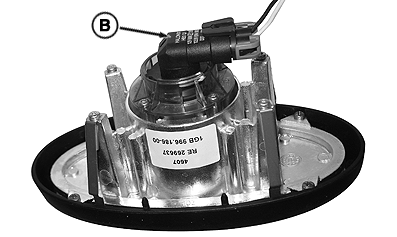

  2. Turn bulb (B) 1/4 turn to remove bulb from fixture.

  3. Insert bulb into fixture, then turn bulb 1/4 turn to lock in place.

  4. Insert fixture into cab roof until it seats and tab is snapped into place.

CS12167,000021E-19-20130107
