Replace Rear Cab Fuses

1. IMPORTANT: Do not attempt to disassemble fuse unless instructed by your John Deere dealer. Ensure both negative (—) and positive (+) battery connections are disconnected from both batteries prior to fuse inspection or replacement.


   N99714-UN-17SEP12


   N99715-UN-17SEP12


   N99716-UN-17SEP12

   A - Cap Screw

   B - Rear Cab Cover

   C - Fuse Cover

   D - CCU Fuse (70 amp)

   E - SRC Fuse (70 amp)

   F - BHC Fuse (70 amp)

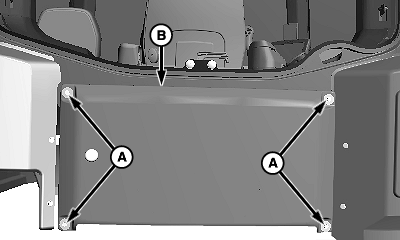

   Remove and retain cap screws (A) and rear cab cover (B).

---

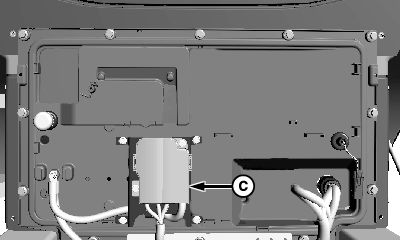

2. Remove fuse cover (C).

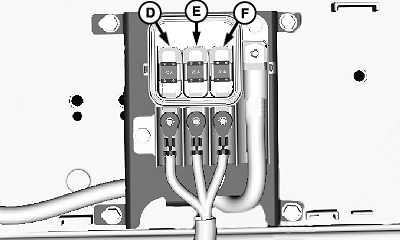

3. Replace or test fuses (D, E and F) as needed.
