Inspect Fan Belt Tensioner—6.8 L Engine

1.
   N99114-UN-08FEB13


   N99113-UN-17SEP12

   A - Cap Screw

   B - Cap Screw and Nut

   C - Right-Hand Engine Side Shield

   D - Breaker Bar

   E - Tensioner

   F - Alternator Pulley

   Raise Hood.

---




2. Remove cap screw (A) and cap screw and nut (B), lift right-hand engine side shield (C) off of alignment studs.

3. Release tension on belt using a 13 mm (1/2 in.) breaker bar (D).

4. Remove belt from alternator pulley (F).

5. Carefully release tensioner.

6. Remove belt from remaining pulleys.

7.
   RXA0068400-UN-10SEP03


   N76712-UN-14JUN07


   N76713-UN-14JUN07

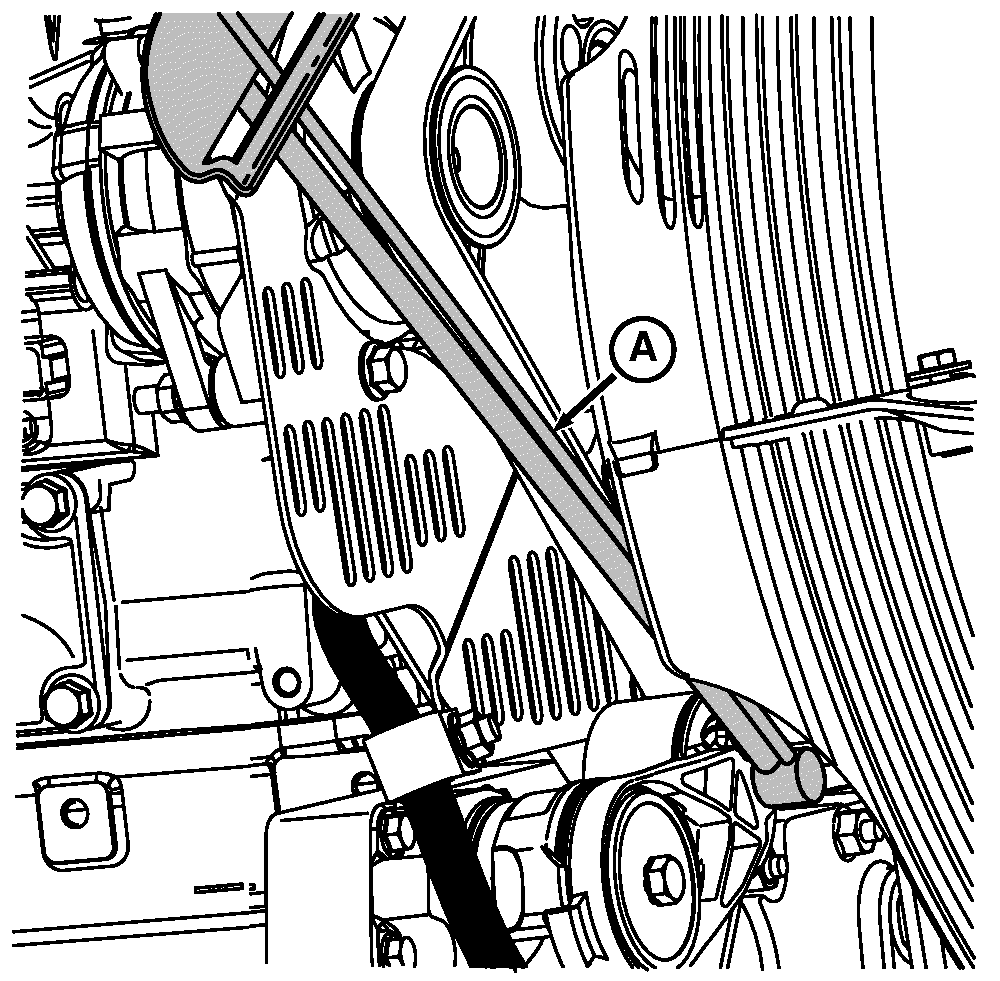

   A - Torque Wrench

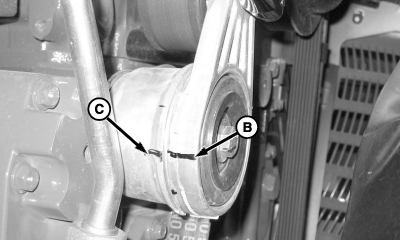

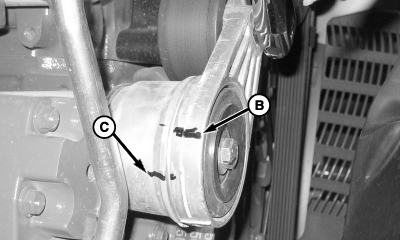

   B - Mark on Tension Arm

   C - Mark on Mounting Bracket

   Measure 21 mm (13/16 in.) from (B) and put a mark (C) on mounting bracket.

---




8. Rotate tension arm with torque wrench (A) until marks (B and C) align. If torque wrench measurement is not within specification, replace tensioner mechanism. (See your John Deere dealer.)

   Item	Measurement	Specification
   Tension Arm	Torque	18—23 N·m (159—204 lb-in.)

9. Install belt and side shield.

10. Lower hood.
