Turn Density Setting Alarm On/Off

1. NOTE: The “Density Setting” alarm alerts the operator if the product density entered on Spreader Product Setup screen is significantly different than that of the product during the CFR calibration.


   N86768-UN-27OCT09

   A - Setup Softkey

   B - Bin Setup Tab

   C - Alarm Setup Button

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Bin Setup tab (B).

3. Select Alarm Setup button (C) and Alarm Setup screen will appear.

4.

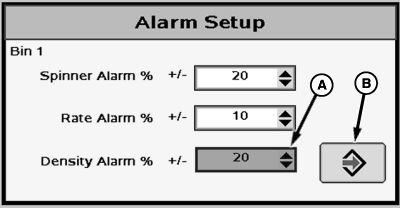

   N80849-UN-12JUN08

   A - Drop-down Box

   B - Enter Button

   Select +/- 5, 10, 15, 20, 25 % deviation or “OFF” from drop-down box (A).

---




5. Select Enter button (B) to save the alarm settings and return to Bin Setup screen.
