Set Product Density

1.

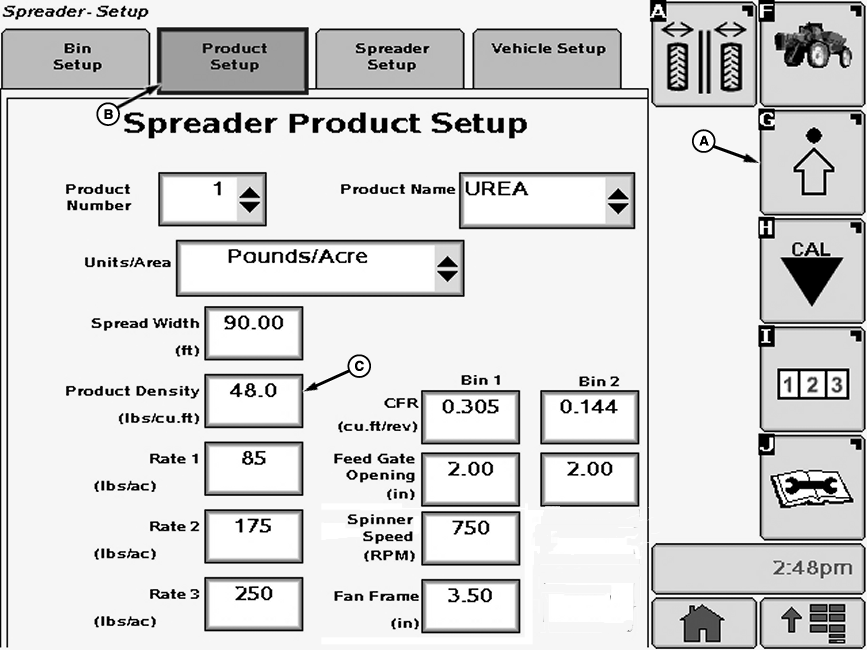

   N82570-UN-08DEC08

   A - Setup Softkey

   B - Product Setup Tab

   C - Input Box

   Select the Setup softkey (A).

---




2. Select the Product Setup tab (B). Spreader Product Setup screen appears.

3. Select input box (C) to input the density in kg/m³ (lb./cu. ft.) of the selected product. This value is normally provided on the ticket received with fertilizer. A numeric key pad appears on screen to input the value. Press “Enter” button on keypad to accept the new value.
