Inspect Hydro Isolators—Annually

N102348-UN-11FEB13

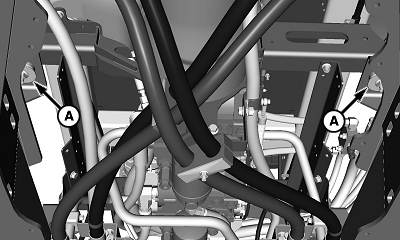

A - Isolators

Inspect four hydro isolators (A) for loose, damaged, or missing bushings. There are two isolators at the front of the hydrostatic pumps and two at the rear.
