Sprayer Main Page

N102638-UN-08APR13

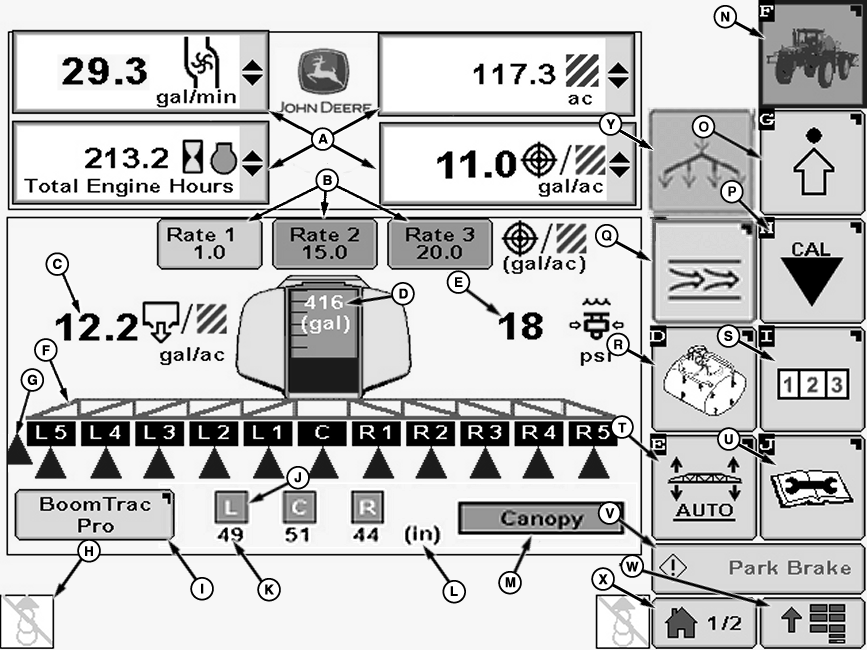

Sprayer Main Page

A - Information Drop Down Menu

B - Pre-programmed Target Rates Per Area

C - Actual Rate Per Area

D - Estimated Remaining Tank Volume

E - Pressure

F - Boom Sections Status

G - Left or Right Fence Row Nozzle—When Spraying

H - Left Or Right Foam Drop Status

I - BoomTrac Pro Button

J - BoomTrac Sensor Status Box

K - Actual Sensor Height

L - BoomTrac Sensor Height Unit of Measure

M - Sensor Target Mode

N - Sprayer Main Softkey

O - Setup Menu Softkey

P - Calibration Menu Softkey

Q - Boom Air Purge Softkey—If Equipped

R - Solution Command Softkey

S - Totals Softkey

T - BoomTrac™ Pro Softkey -If Equipped

U - Diagnostics Softkey

V - Message Center \ Time Display

W - Menu Button

X - Home Button

Y - Auto System Prime Softkey
