Message Center Cautions and Warnings

N89299
N89299-UN-03SEP10

N103147
N103147-UN-10APR13

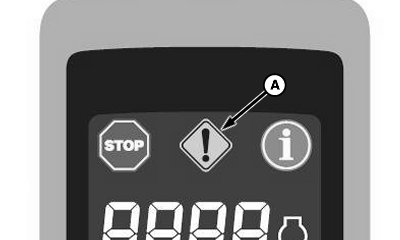

A - Caution Lamp

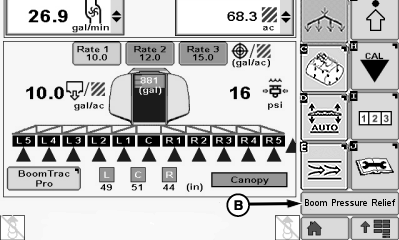

B - Caution Message

The caution lamp (A) lights on the primary display unit. A caution message (B) appears in the display's Message Center. The message remains visible as long as the condition persists.

An audible alarm is sounded when the continuous caution first appears.

Examples:

  • BOOM PRESSURE RELIEF WARNING
  • PARK BRAKE WARNING
  • SECONDARY BRAKE CAUTION
  • LOW FLOW WARNING
  • HIGH FLOW WARNING
  • BOOM SECTIONS OFF WARNING
  • SPRAY DISABLED WARNING
  • REMOTE LOAD DISABLED WARNING
  • PUMP MAX REACHED WARNING
  • HIGH FLOW SETUP WARNING
  • SERVICE 50 DUE
  • SERVICE 100 DUE
  • SERVICE 250 DUE
  • SERVICE 500 DUE

CS12167,0000323-19-20130408
