Lubricate Drive Shaft U-Joints—Every 100 Hours

N102224-UN-21AUG13

N103036-UN-10APR13

N102346-UN-21AUG13

A - Cap Screw

B - Access Cover

C - Cap Screw

D - Shield

E - Grease Fitting

F - Grease Fitting

IMPORTANT: Avoid damage to needle bearing. Do not use grease containing more that 1% molybdenum disulfide. Use SD Polyurea (TY6341) grease or other greases that meet the following:

• John Deere specification JDM J13E4
• NLGI Performance Classification GC-LB
• NLGI No. 2 standard specification

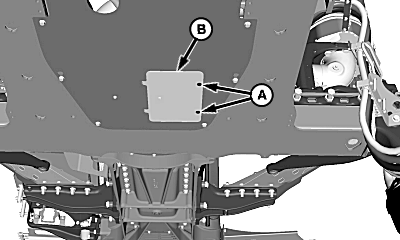

1. Remove cap screw (A) and access cover (B).

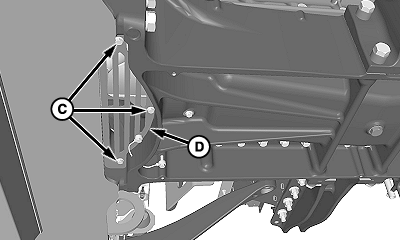

2. Remove cap screws (C) and shield (D)

3. NOTE: Drive shaft has a total of three grease fittings.

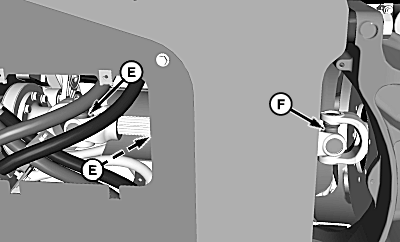

   Lubricate grease fittings (E) at hydrostatic pump end and grease fitting (F) at engine end.
