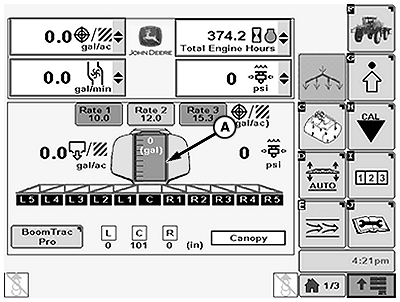

Refill Tank

N102645
N102645-UN-08MAR13

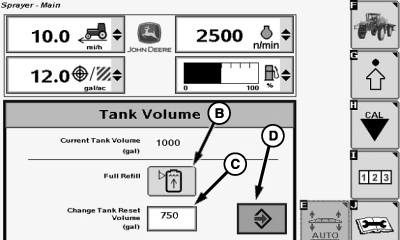

Estimated Volume Remaining

N74938
N74938-UN-31JAN07

A - Estimated Volume Remaining/Refill Button

B - Refill Level Button

C - Input Box

D - Enter Button

To reset estimated spray level after refilling:

  1. Press estimated volume remaining/refill button (A).

  2. Select the desired refill level button (B)

  3. If the tank level after refilling is not the same as the numbers shown in the input boxes (C) under "Volume (gal)", then you can enter a new level by selecting an input box (C) under “Volume (gal)” and entering the new level using the pop-up keyboard. This will also change the Tank Volume value from the Spray Setup page.

  4. Press the refill level button corresponding with correct level after changing the tank volume value to set the tank level to the new tank volume.

  5. Select the Enter button (D) to leave the pop-up window.

CS12167,0000337-19-20130613
