Inspect Fan Belt Tensioner—9.0 L Engine

1.
   N103028-UN-10APR13


   N103029-UN-10APR13

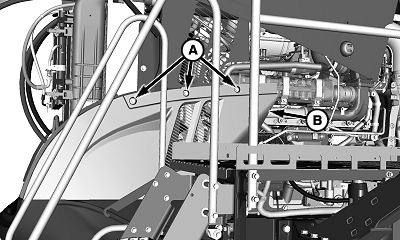

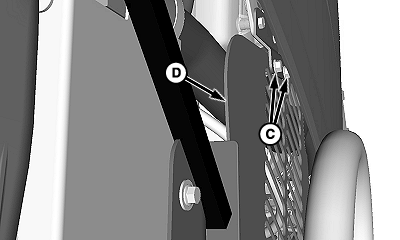

   A - Cap Screw

   B - Left-Hand Engine Side Shield

   C - Cap Screw

   D - Fan Shield

   Raise hood.

---




2. Remove cap screws (A) and left-hand engine side shield (B).

3. Remove cap screws (C) and fan shield (D).

4.
   N103030-UN-10APR13

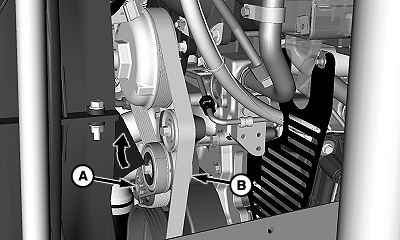

   A - Tensioner

   B - Belt

   Install 13 mm (1/2 in.) breaker bar in tensioner (A).

---




5. Rotate tensioner clockwise to release belt tension.

6. Remove belt (B) from pulleys and carefully release tensioner.

7.
   N103031-UN-10APR13


   N103032-UN-10APR13

   Marks Aligned

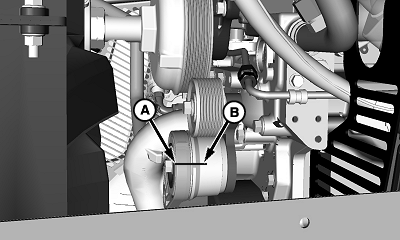

   A - Mark on Tensioner

   B - Mark on Bracket

   Place mark on tensioner arm at (B).

---




8. Measure 21 mm (13/16 in.) from mark (A) and put a mark (B) on mounting bracket.

9. Rotate tension arm with torque wrench until marks (A and B) align. If torque wrench measurement is not within specification, replace tensioner mechanism. (See your John Deere dealer.)

   Item	Measurement	Specification
   Tension Arm	Torque	18—23 N·m (159—204 lb-in.)

10. Install belt and side shield.

11. Lower hood.
