Reset Service Interval Counter

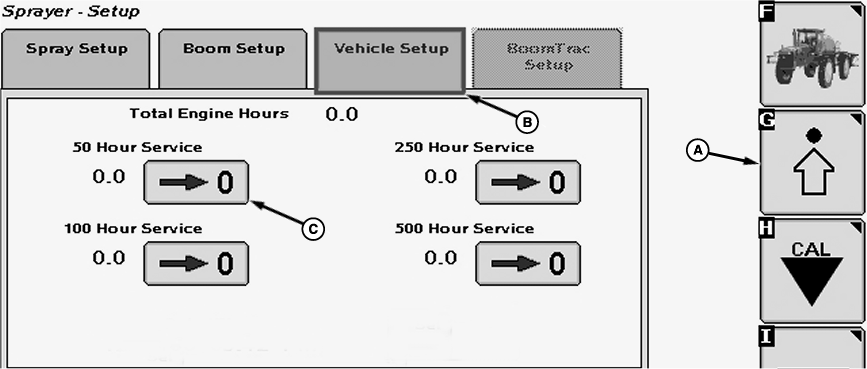

N74760-UN-21FEB08

A - Setup Softkey

B - Vehicle Setup Tab

C - Zero Button

Service interval statements appear on the bottom of the Sprayer Main Page after a service interval has expired. The service interval statement informs the operator that the time has expired since the last service was performed. The service intervals that SprayStar monitors are 50, 100, 250 and 500 hours.

When a service interval statement appears on bottom of Sprayer Main Page, the operator should perform the service as soon as possible and then reset the service interval counter.

To reset a service interval counter:

1. Verify key switch is ON.

2. Select the Setup softkey (A) to view the setup menu.

3. Select the Vehicle Setup tab (B).

4. When a service interval has been reached and service has been completed, push appropriate button (C) next to the time interval to reset the interval counter for the service just performed.

   NOTE: (See Lubrication and Maintenance section in this manual for items to be serviced and their service intervals). SprayStar will not produce a service interval statement on the Sprayer Main page until a service interval expires.
