Enable Boom Pressure Relief

1. CAUTION: Avoid unintended spray from nozzles. Do not use when non-John Deere aftermarket solution system equipment is installed. These include but are not limited to, direct injection and section control systems. See the John Deere direct injection system operator’s manual for details regarding the use of this feature with a direct injection system.

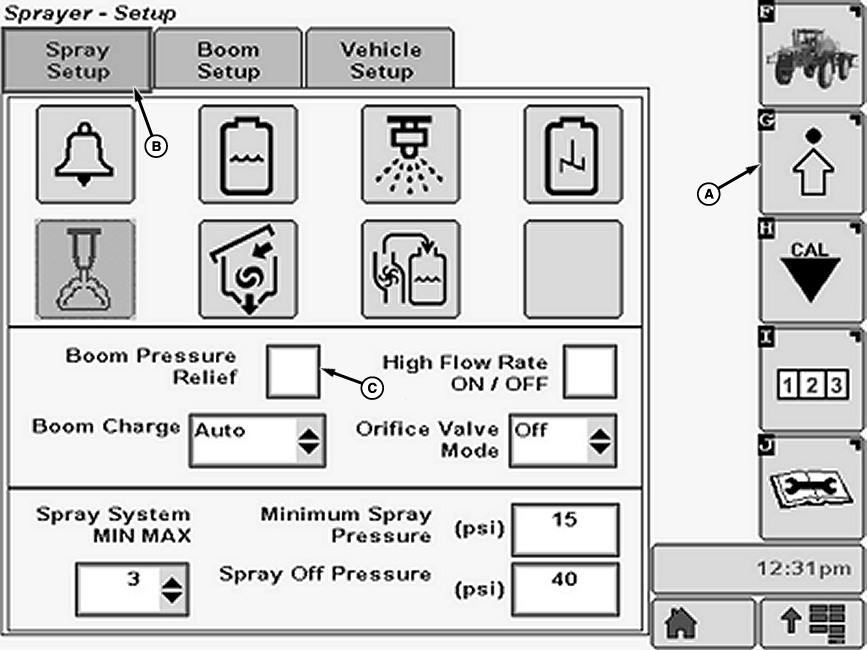

   N103604-UN-09MAY13

   A - Setup Softkey

   B - Spray Setup Tab

   C - Check Box

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. NOTE: A check mark in the box indicates that “Boom Pressure Relief” is activated.

   Select check box (C) next to “Boom Pressure Relief” and a check will appear inside box activating item. To deactivate a check box, touch check box to remove the check.
