30.5 M (100 ft.) Boom Flow Characteristics—Application Rate vs. Speed

NOTE: Ranges shown are based on water application.

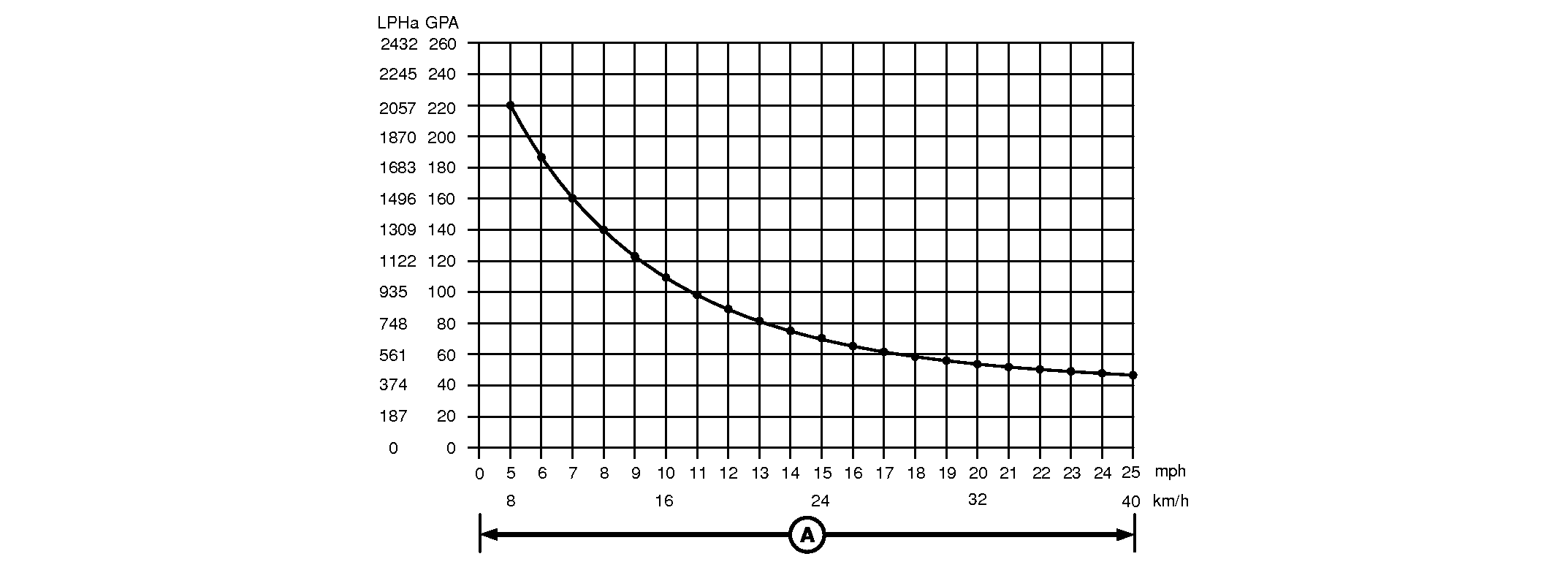

N104103-UN-10JUN13

Application Range—High Flow Pump, High Flow Plumbing

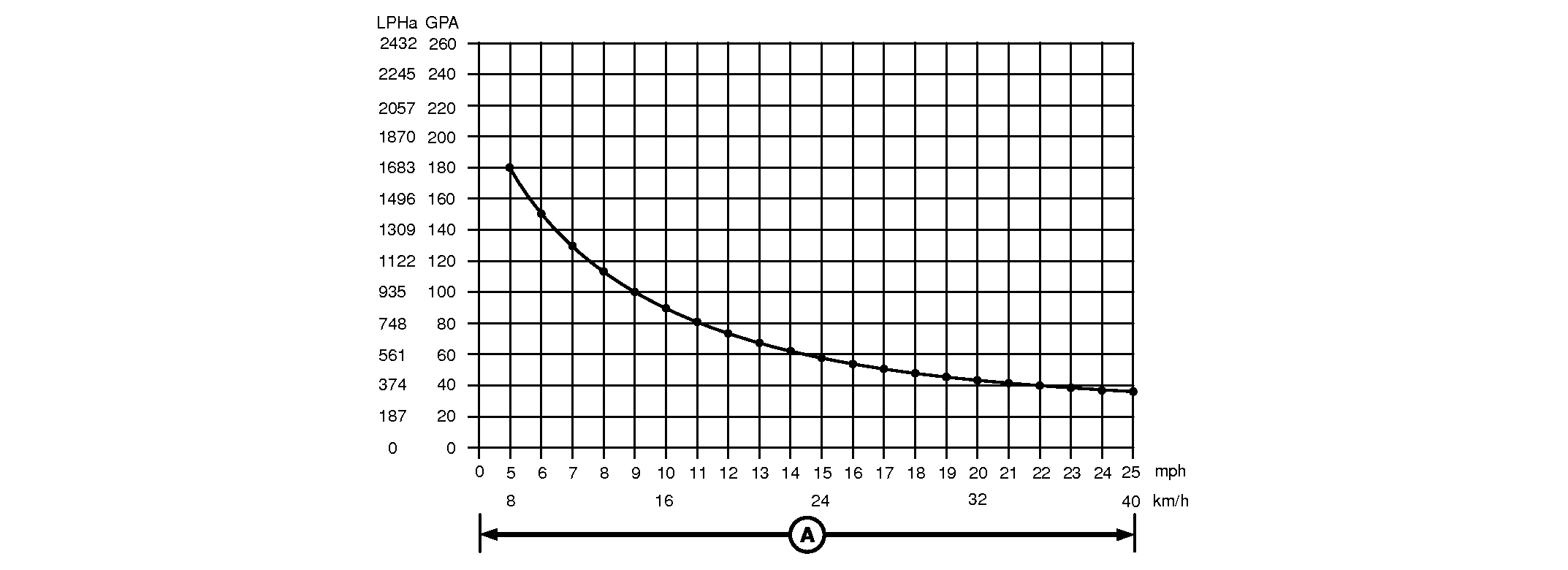

N104104-UN-10JUN13

Application Range—Standard Flow Pump, High Flow Plumbing

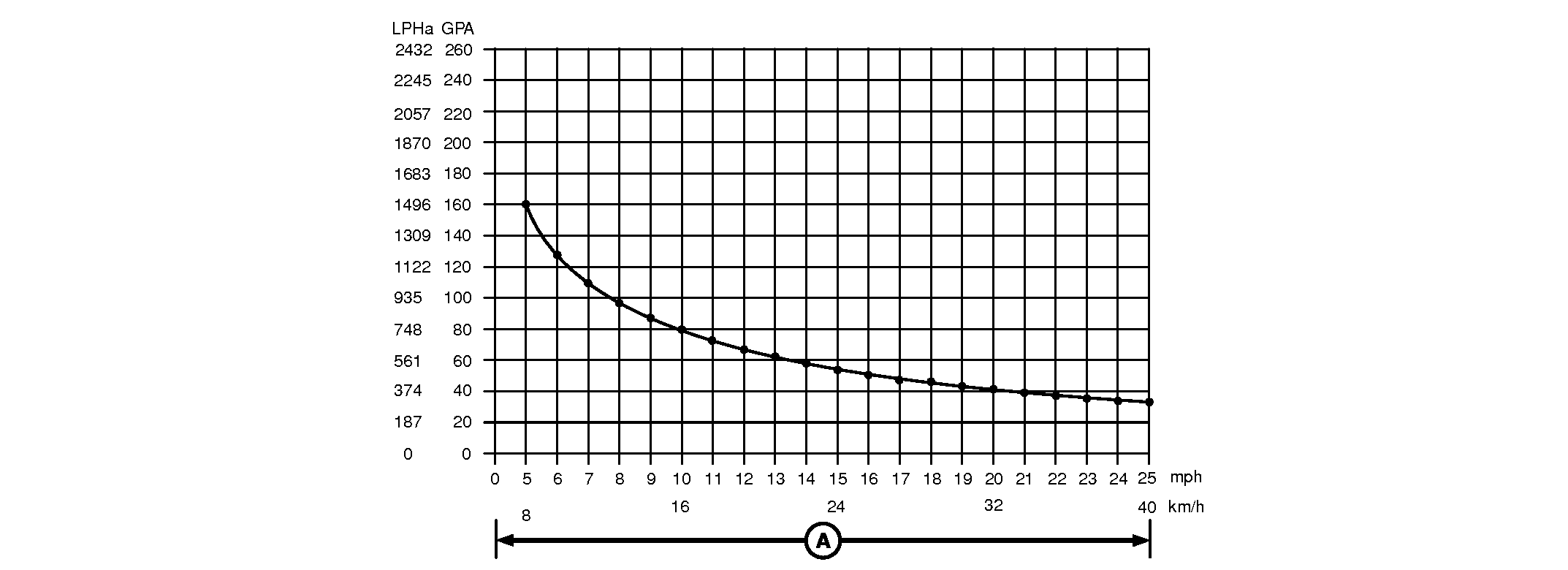

N104105-UN-10JUN13

Application Range—Standard Flow Pump, Standard Flow Plumbing

A - Vehicle Speed
