36.6 M (120 ft.) Boom Flow Characteristics—Application Rate vs. Speed

NOTE: Ranges shown are based on water application.

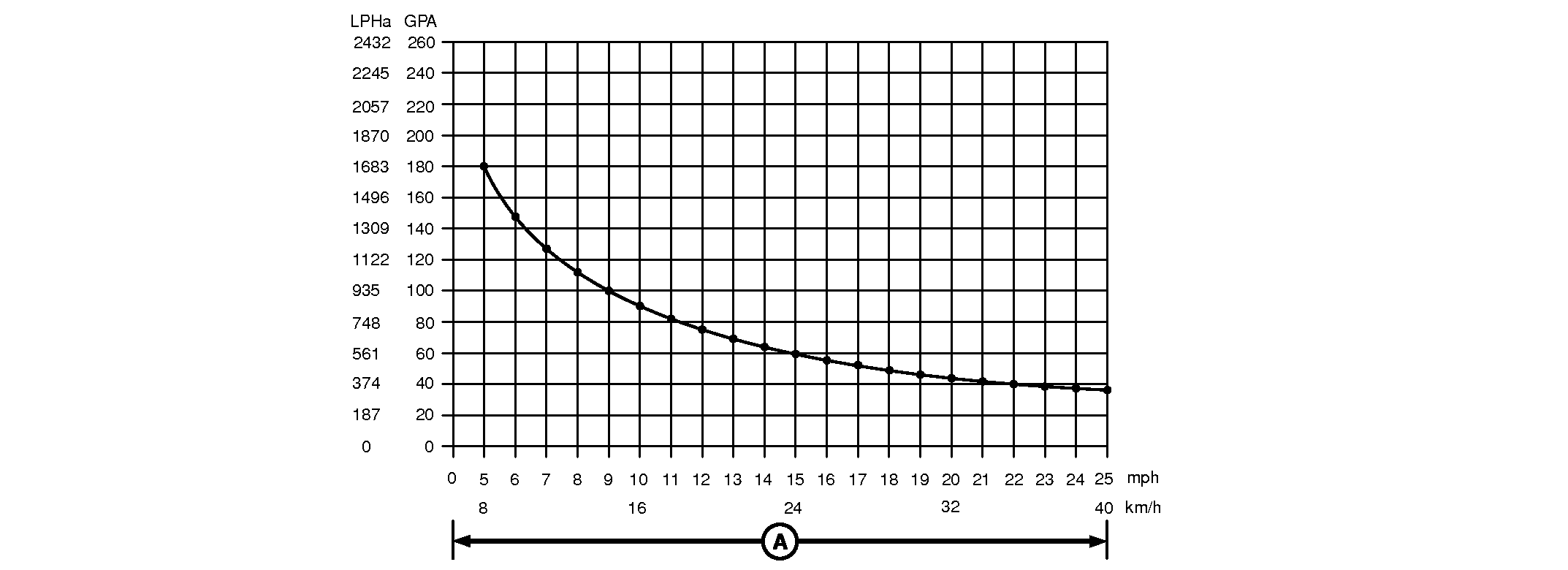

N104097-UN-10JUN13

Application Range—High Flow Pump, High Flow Plumbing

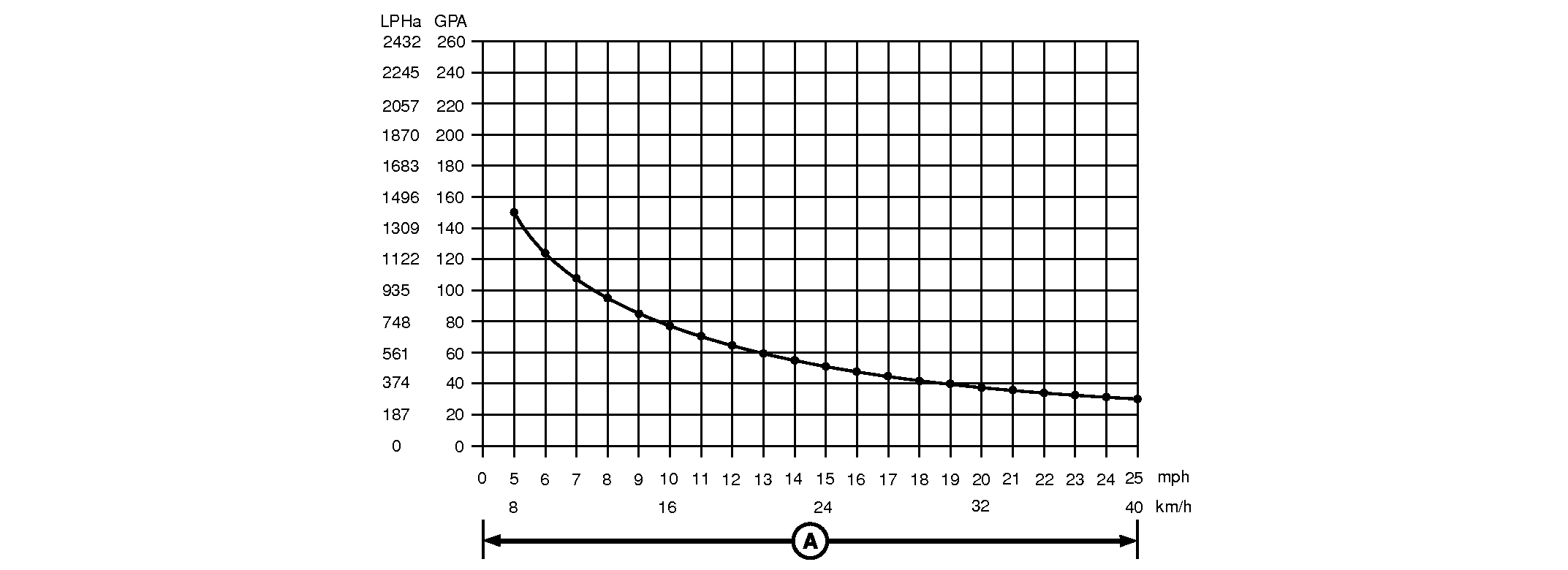

N104098-UN-10JUN13

Application Range—Standard Flow Pump, High Flow Plumbing

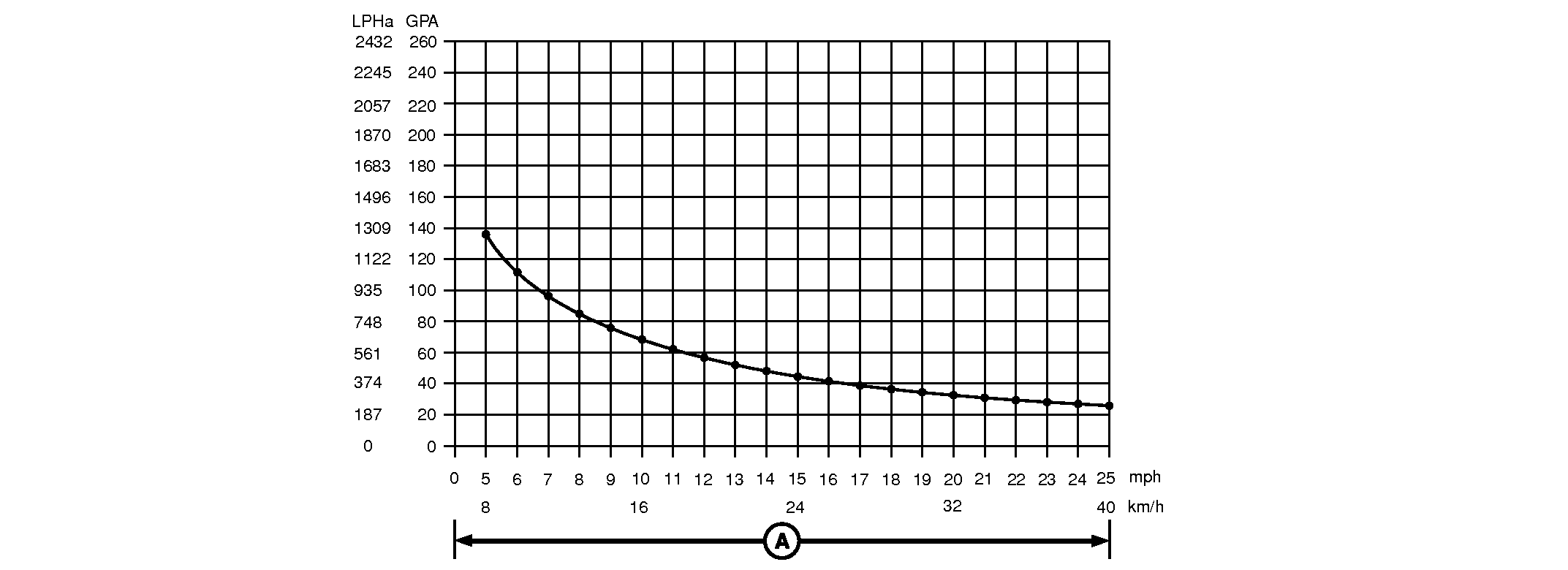

N104099-UN-10JUN13

Application Range—Standard Flow Pump, Standard Flow Plumbing

A - Vehicle Speed
