Setup Flowmeter(s) Calibration Number

1. NOTE: Minimum flow rate that can be measured by flowmeter is 15 Lpm (4 gpm).


   N87484-UN-25MAR10

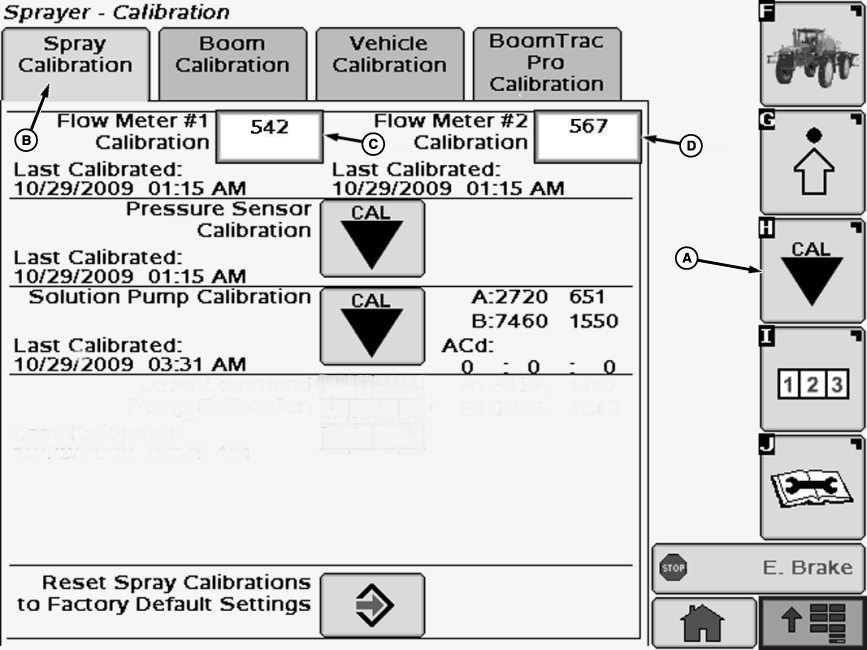

   A - Calibration Softkey

   B - Spray Calibration Tab

   C - Input box

   D - Input box

   Select the Calibration softkey (A) to view the setup menu.

---




2. Select the Spray Calibration tab (B).

3. Select input box (C) to be changed and enter a new value using pop-up keyboard. Select the enter button to accept new value.

4. NOTE: If optional high flow rate plumbing is to be used, a second flow meter is required. Verify correct calibration numbers are entered for each flowmeter. The calibration number for the flowmeter(s) is stamped on the metal serial number tag attached to the back of the GreenStar display. An additional tag is attached to the nut of the flowmeter.

   Select input box (D) to be changed and enter a new value using pop-up keyboard. Select the enter button to accept new value.
