Screen Layout

PC8577-UN-02NOV05

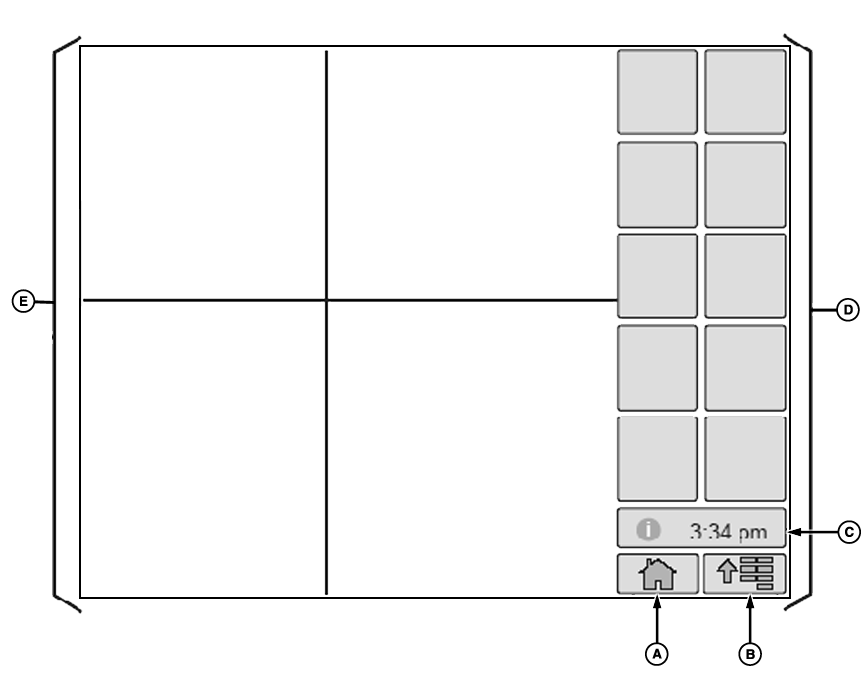

Screen Layout

A - Home

B - Menu

C - Message Center

D - softkeys

E - Application Info Area

NOTE: Display screen illustrated on following pages are provided for reference only. Actual screens may appear differently due to connection of optional devices and/or software versions.

Home (A), Menu (B) and Message Center (C) selections will be on every screen.

• Home selection—allows operator to view Home Page
• Menu selection—allows operator to view a list of available applications
• Message Center selection—allows operator to view cautions, warning messages, diagnostic information (See SETUP MESSAGE CENTER in Display Message Center section.)

Selecting one of the softkeys (D) will cause a new page to appear or a process to be started.
