Clean Diesel Exhaust Fluid (DEF) Tank Vent Filter—As Required

CAUTION: Avoid serious injury from falling. Do not stand on fuel tank when replacing air filters.

NOTE: Use a commercial ladder to access DEF tank vent filter.

1.
   N99728-UN-17SEP12


   N104342-UN-12JUL13

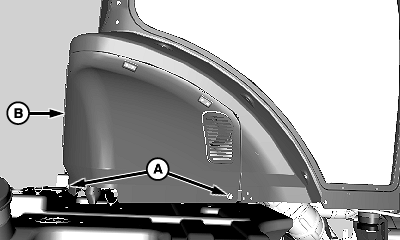

   A - Cap Screw, 2 used

   B - Access Panel

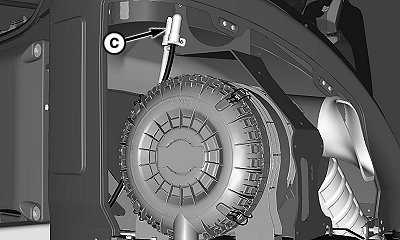

   C - DEF Tank Vent Filter

   Remove and retain cap screws (A).

---




2. Remove access panel (B).

3. Remove DEF tank vent filter (C) and clean in soapy detergent solution.

4. Blow dry with compressed air and replace.
