Fill Rinse Tank Using Rinse Tank Fill Valve

1. IMPORTANT: Damage to rinse tank and surrounding structure can occur when filling at a high rate if tank lid is not removed. Remove tank lid when filling at high rates to avoid damage.

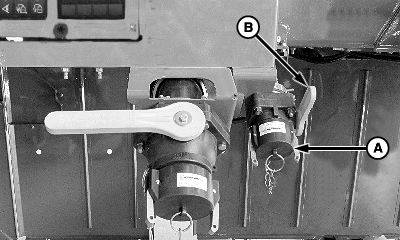

   N99946-UN-17SEP12

   A - Filler Cap

   B - Valve

   Remove fill cap (A) and connect fill hose.

---




2. Open valve (B) and fill tank to desired level.

3. After tank is filled, close valve.

4. Remove fill hose and reattach fill cap.
