Replace HID-Xenon Ballast Assembly

NOTE: For important safety information, see Safety Rules When Replacing High Intensity Discharge (HID) Xenon Lights in this section before performing this procedure.

CAUTION: Avoid serious injury or death from electric shock or lamp explosion. This lamp is powered by 25,000 volts. Do not begin installation of HID-Xenon lights unless the lights are turned off, the engine is turned off, the key is removed, and appropriate eye protection is worn.

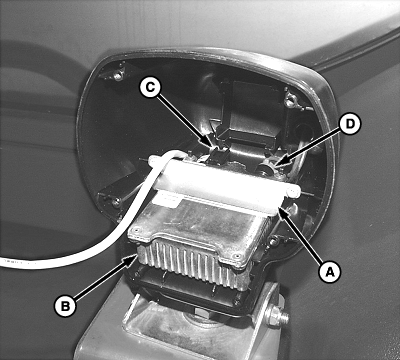

  1. N64397
    N64397-UN-31OCT03

    A - Retainer

    B - Ballast Assembly

    C - Connector

    D - Connector

    Remove HID bulb assembly. (See Replace HID Work Light Bulb Assembly in this section.)


  2. Remove screws and retainer (A).

  3. Remove ballast assembly (B) from housing and disconnect connectors (C) and (D).

  4. Install in reverse order.

CS12167,00003C4-19-20130620
