Replace HID-Xenon Chassis Work Light Bulb Assembly

NOTE: For important safety information, see Safety Rules When Replacing High Intensity Discharge (HID) Xenon Lights in this section before performing this procedure.

CAUTION: Avoid serious injury or death from electric shock or lamp explosion. This lamp is powered by 25,000 volts. Do not begin installation of HID-Xenon lights unless the lights are turned off, the engine is turned off, the key is removed, and appropriate eye protection is worn.

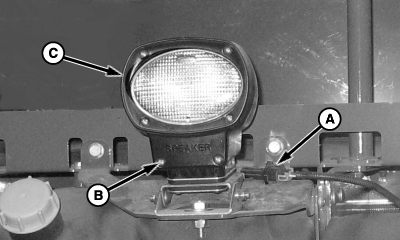

  1. N90723
    N90723-UN-20DEC10

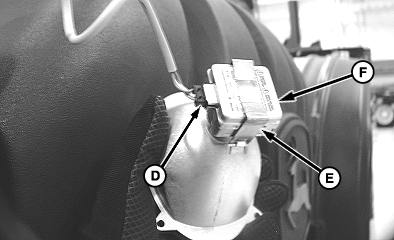

    N64396
    N64396-UN-31OCT03

    A - Connector

    B - Socket-head Screw (6 used)

    C - Cover

    D - Connector

    E - Retainer

    F - HID Bulb Assembly

    Disconnect connector (A).


  2. NOTE: Hold lamp in place when removing cover (C). When cover is removed, light may fall out of housing.

    Remove socket-head screws (B) and front housing cover (C).

  3. Disconnect connector (D).

  4. CAUTION: Wear gloves and safety glasses when handling bulbs. Dangerous voltage spark-over may occur and cause damage/injury at the connector. See manufacturer warning packaged with replacement bulb.

    Press in on HID bulb assembly (F) and remove retainer (E) using a screwdriver.

  5. Replace bulb assembly and install retainer.

  6. Connect harness connector and install lamp in housing.

  7. Install cover and socket-head screws.

  8. Connect harness connector.

CS12167,00003C5-19-20130620
