Calibrate Solution Pump

The SprayStar system will automatically calibrate itself in order to provide an optimal control for a particular situation.

NOTE: Do not perform this procedure for erratic solution pump rate or pressure if the A and B numbers are within range. If A and B numbers are within range, see entries for erratic rate or pressure in Troubleshooting section.

The only time auto calibration needed is when the A and B values do not lie within their ranges or when one of the following has been replaced:

• Solution pump/hydraulic motor assembly
• Proportional valve
• Hydraulic pump
• Spray Rate Controller

NOTE: The A and B ranges are:

Standard Flow Pump
	Speed (rpm)	Current (mA)
A	800-1400	350-650
B	5500-6000	1275-1625

High Flow Pump
	Speed (rpm)	Current (mA)
A	800-1200	400-600
B	4000-4500	1450-1750

To auto calibrate the sprayer:

NOTE: Solution pump switch should be turned off to perform this procedure.

1.

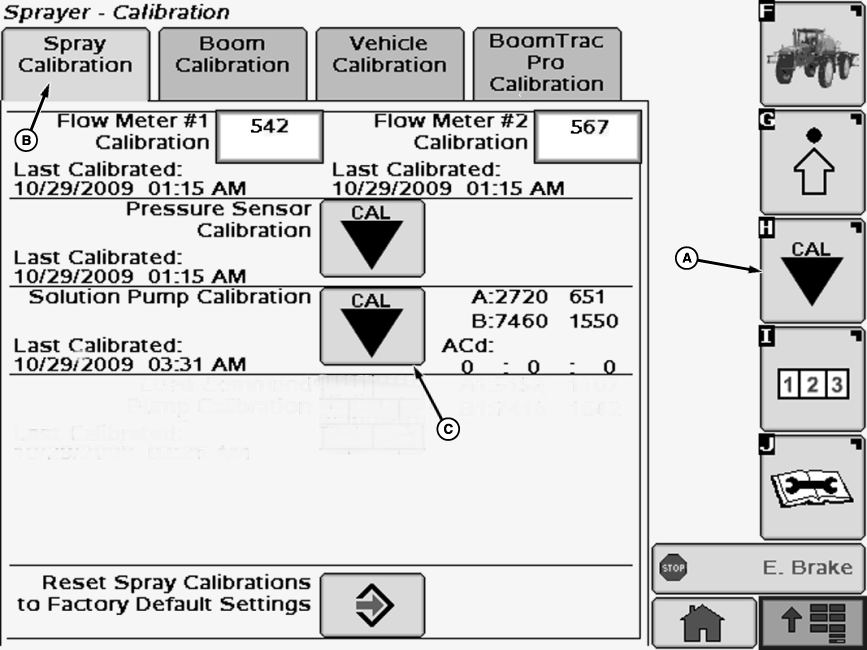

   N87486-UN-25MAR10

   A - Calibration Softkey

   B - Spray Calibration Tab

   C - Calibration Icon

   Select the Calibration softkey (A) to view the setup menu.

---




2. Select the Spray Calibration tab (B).

3. Select calibration icon (C) next to Pump Calibration. Pump Calibration will appear.

4. NOTE: Warm hydraulic fluid temperature to normal operating range before calibration and fill solution tank with enough water or solution to keep pump from running dry.

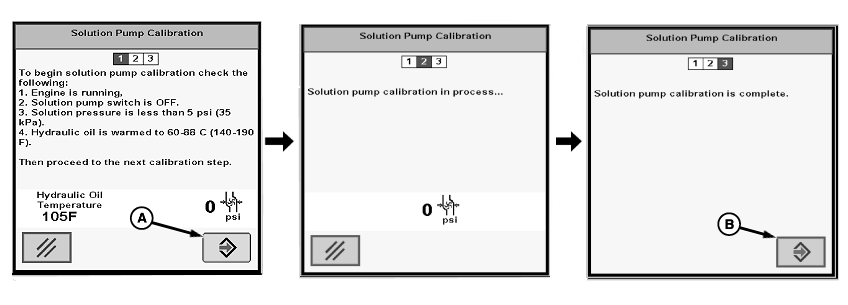

   N105922-UN-20AUG13

   A - Enter Button

   B - Enter Button

   Follow instructions on first screen. When finished select Enter button (A) to proceed to next screen.

---




5. NOTE: Pump calibration will take approximately 1-2 minutes. The solution pump will turn off when auto calibration is done.

   “Solution pump calibration is complete.” will be displayed. Press Enter button (B) to return to Spray Calibration tab.
