Front Chassis Load Center

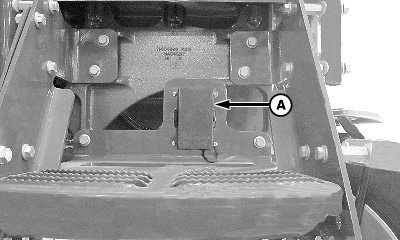

NOTE: Front chassis load center (A) is located on the outside end of the battery box.

On description list “K” is for relay and “F” is for fuse.

N99604-UN-17SEP12

N99712-UN-22APR13

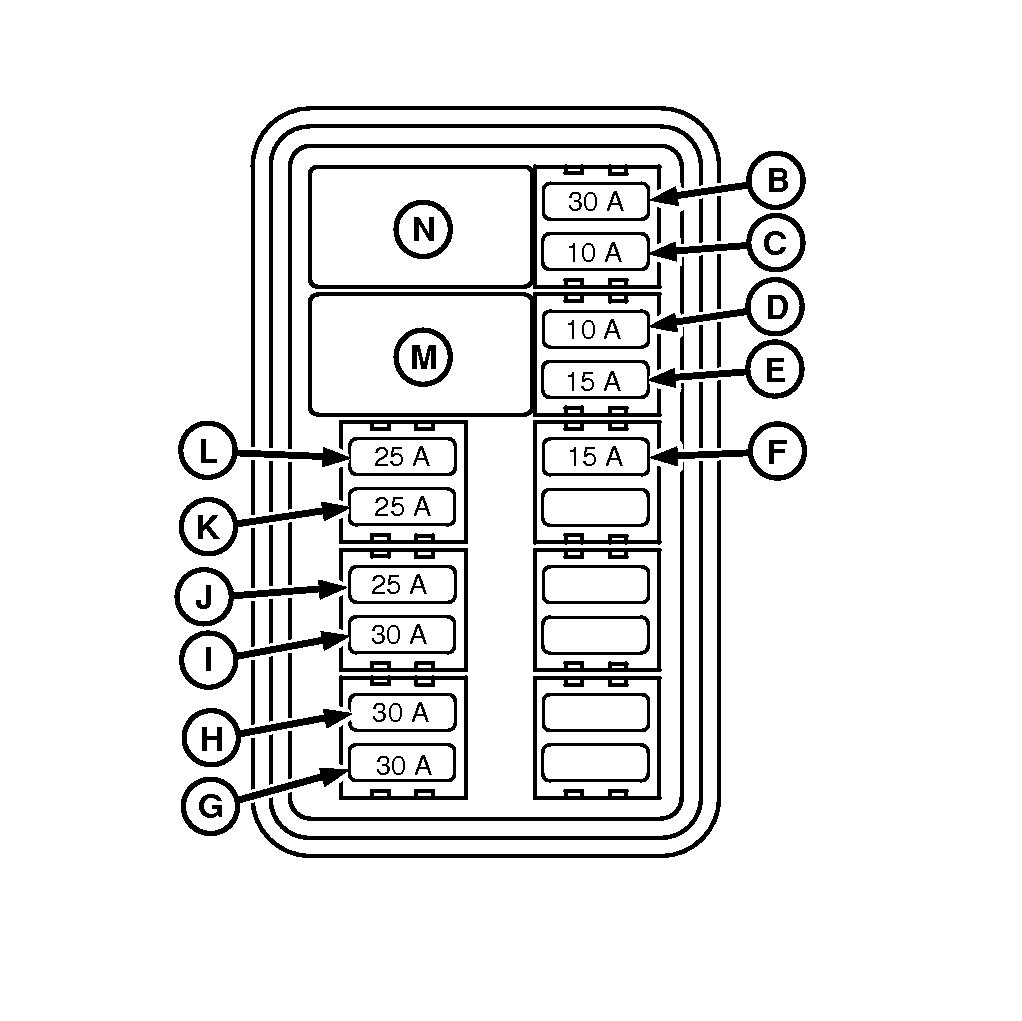

A - Front Chassis Load Center

B - F 101—Auxiliary Post Terminals (30 amp)

C - F102—SRC (10 amp)

D - F103—BHC (10 amp)

E - F104—Foamer (15 amp)

F - F105—Fuel Transfer Pump (15 amp)

G - F111—Direct Injection High Volume Pump 1 (30 amp)

H - F112—Direct Injection High Volume Pump 2 (30 amp)

I - F113—Direct Injection Low Volume Pump (30 amp)

J - F114—ECU B+ After Treatment (25 amp)

K - F115—ECU B+ Engine Control (25 amp)

L - F116—ECU B+ Application (25 amp)

M - K102—Spare

N - K101—Foamer
