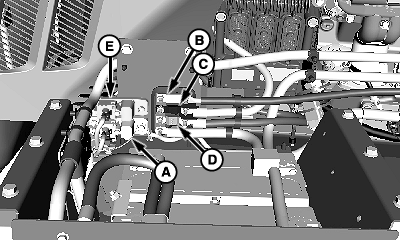

Battery Box Fuses and Relay

N99603-UN-17SEP12

A - K201—Start Relay (60 amp)

B - F202—Roof Controller Fuse (125 amp)

C - F201—Alternator Fuse (200 amp)

D - F203—Cab Chassis System Fuse (175 amp)

E - K202—Direct Injection Relay (60 amp)—If Equipped

IMPORTANT: Do not attempt to disassemble fuse unless instructed by your John Deere dealer. Ensure both negative (—) and positive (+) battery connections are disconnected from both batteries prior to fuse inspection or replacement.
