Inspect Air Springs for Debris—Daily
IMPORTANT:

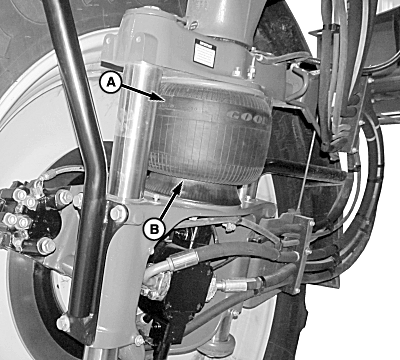

N105940-UN-06SEP13
A - Air Spring
B - Inspection Area
Dirt and debris collection around the air spring (A) can damage air spring.Inspect area around air spring for dirt and debris collection. Clean area of any dirt or debris.
Verify that no dirt or debris is trapped at inspection area (B), between rubber and piston on the air spring.
|
CS12167,0000403-19-20130906 |
